Bromic Eclipse Smart-Heat 3300W Electric Pendant Heater – Radiant Infrared Heat & Dimmable LED Lighting
Product Overview
Transform your outdoor living space into an elegant retreat with the Bromic Eclipse Smart-Heat 3300W Electric Pendant Heater. Combining powerful radiant infrared heating with integrated dimmable LED lighting, this sophisticated outdoor heater delivers exceptional warmth and beautiful illumination in one contemporary design.
Featuring a sleek circular profile, premium matte black finish, and innovative ceramic heating screen, the Eclipse creates a welcoming atmosphere for outdoor dining, entertaining, and relaxing long after the sun goes down.
With 3,300 watts of heating power and coverage up to 144 square feet, the Eclipse is designed for premium residential patios, covered outdoor spaces, restaurants, hospitality terraces, and other suitable outdoor environments.
🔥 Features & Benefits
- 3,300W Radiant Infrared Heating: Delivers comfortable directional warmth across outdoor spaces up to 144 sq. ft.
- Integrated Dimmable LED Lighting: Warm white illumination creates an inviting atmosphere for outdoor gatherings.
- Four Heat Settings: Select 0%, 33%, 66%, or 100% heating output when paired with the compatible optional dimmer controller.
- Even Heat Distribution: Advanced ceramic screen distributes infrared warmth while minimizing visible light from the heating element.
- Elegant Pendant Design: Contemporary circular styling with a premium matte black finish.
- Weather-Resistant Construction: Corrosion-resistant, double-coated steel with an IP54 weather protection rating.
- Wind-Resistant Performance: Designed for suitable outdoor heating applications.
- Flexible Mounting: Includes a 24-inch twin mounting pole with additional mounting options available separately.
- Smart Control Compatible: Works with the optional Bromic Eclipse Dimmer Controller and wireless remote.
- Residential & Commercial Applications: Suitable for premium patios, outdoor dining spaces, and hospitality environments.
🌡️ Advanced Radiant Infrared Heating
The Bromic Eclipse Smart-Heat uses infrared heating technology to deliver comfortable warmth directly toward people and surrounding surfaces rather than relying solely on heating the surrounding air.
Its innovative ceramic screen helps distribute heat evenly while reducing the visible glow commonly associated with traditional electric patio heaters.
With up to 144 square feet of heating coverage, the Eclipse helps create a more comfortable outdoor environment during cooler evenings.
💡 Integrated Dimmable LED Lighting
Enjoy the convenience of outdoor heating and elegant lighting in one sophisticated fixture.
- LED Color: Warm White
- Color Temperature: 3000K
- LED Output: 216.6 Lumens
- Lighting Control: Dimmable with compatible control equipment
The integrated LED lighting provides warm, welcoming illumination for outdoor dining, entertaining, and relaxing.

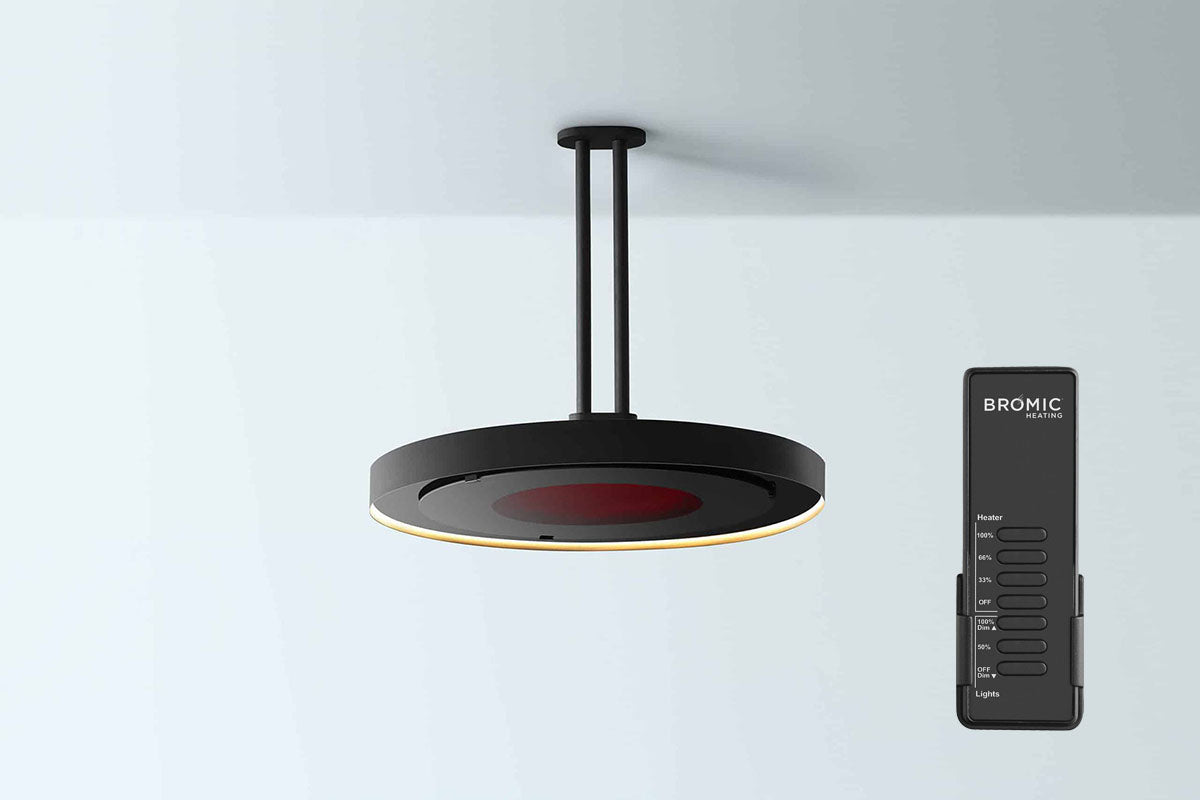

🎛️ Adjustable Heating & Smart Controls
When paired with the compatible Bromic Smart-Heat Eclipse Dimmer Controller, the heater offers four selectable heating levels:
- 0%: Heating Off
- 33%: Low Heat
- 66%: Medium Heat
- 100%: Full Heating Output
The compatible controller also enables adjustable LED lighting and convenient wireless remote operation.
Important: The Eclipse Dimmer Controller and wireless remote are optional accessories and are not included with the standard heater package unless specifically stated in the selected product configuration.
🏡 Ideal Outdoor Applications

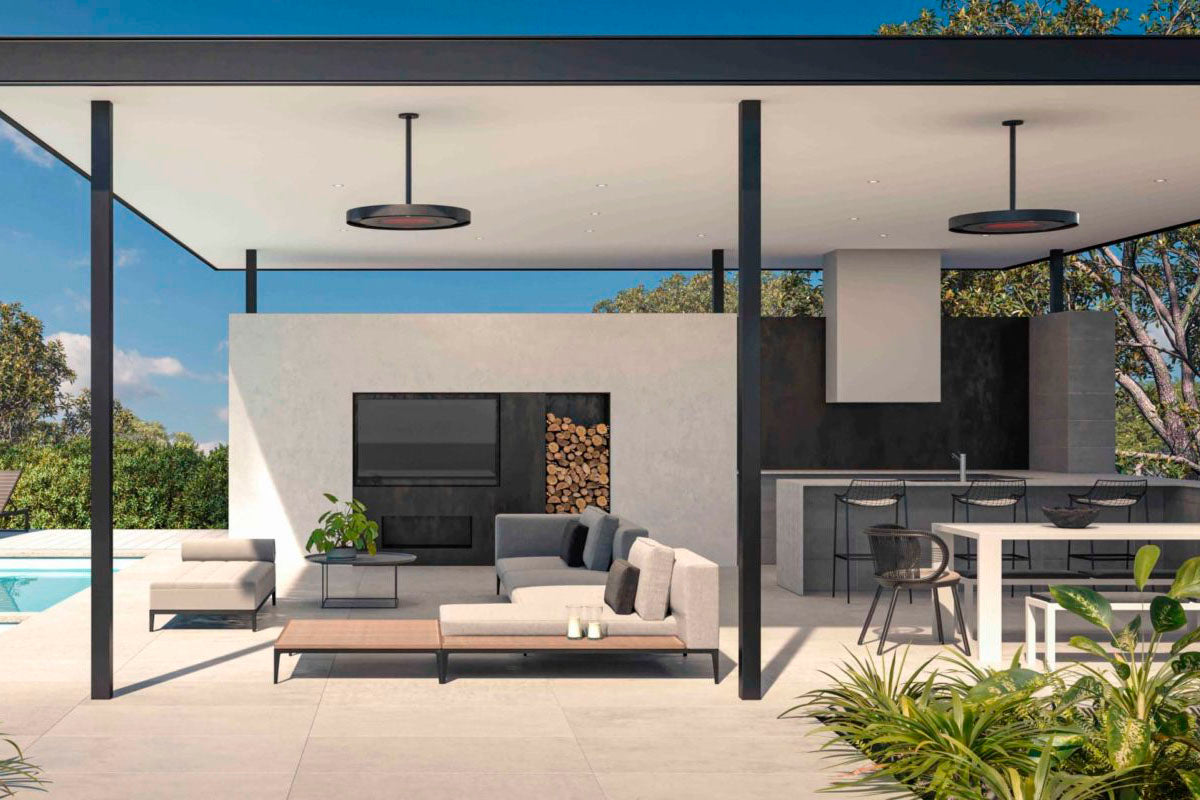

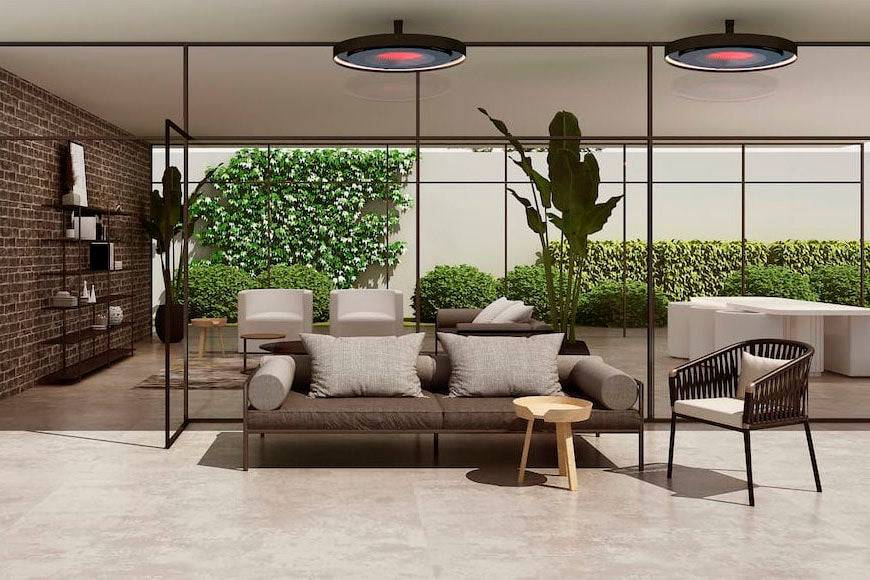

- Covered patios and outdoor living spaces
- Residential decks and entertaining areas
- Outdoor dining and conversation areas

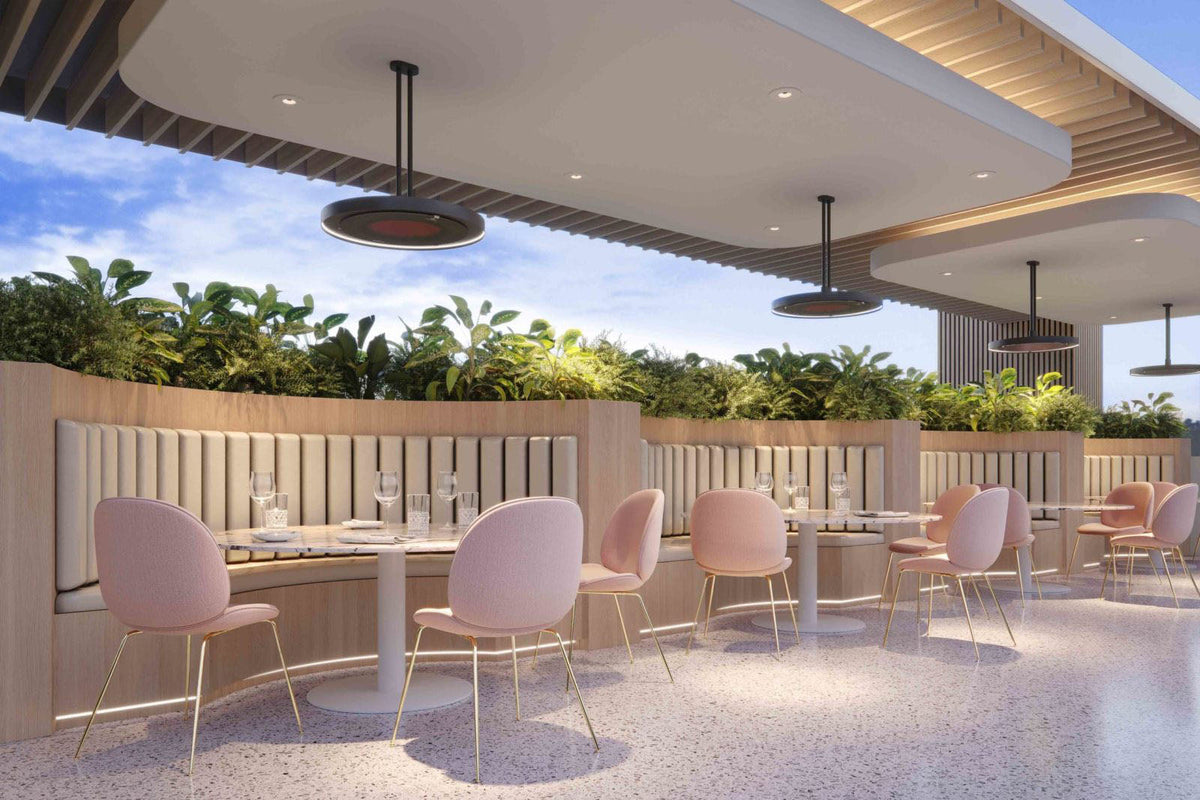

- Restaurant patios and hospitality terraces
- Commercial outdoor seating areas
- Premium outdoor lounge environments
📐 Flexible Mounting Options

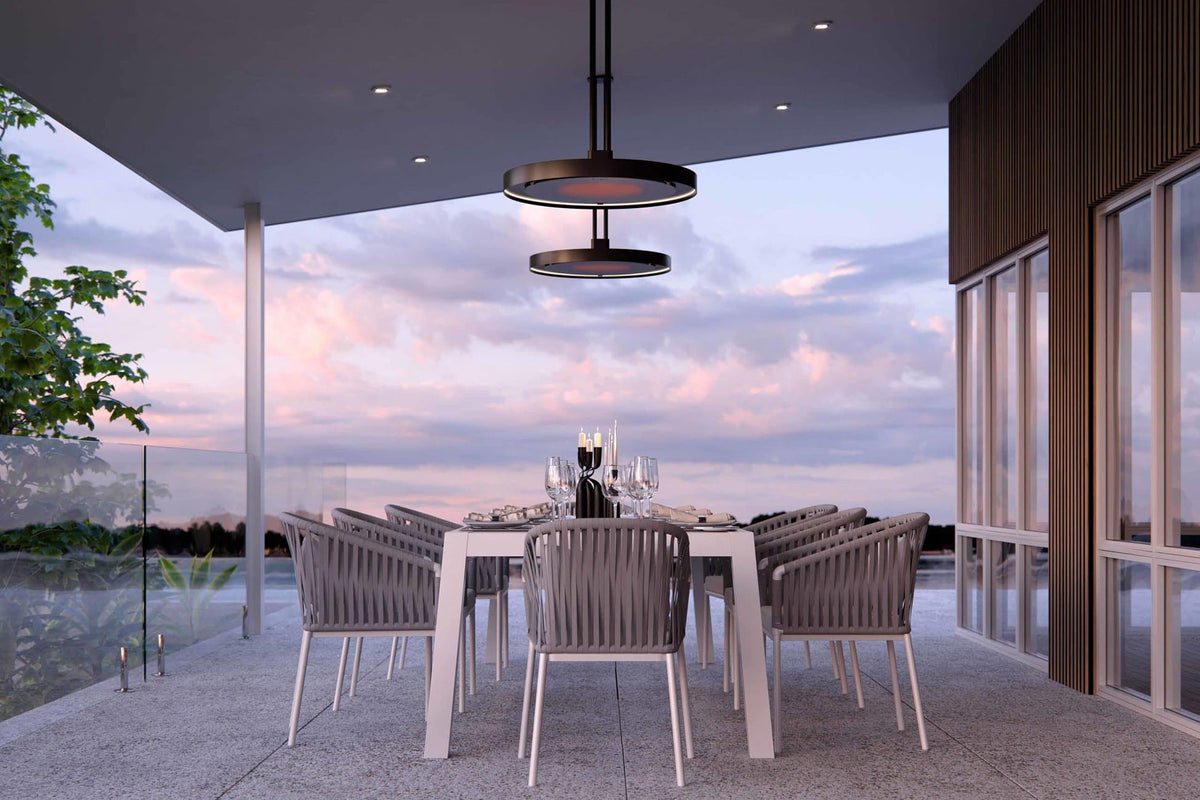

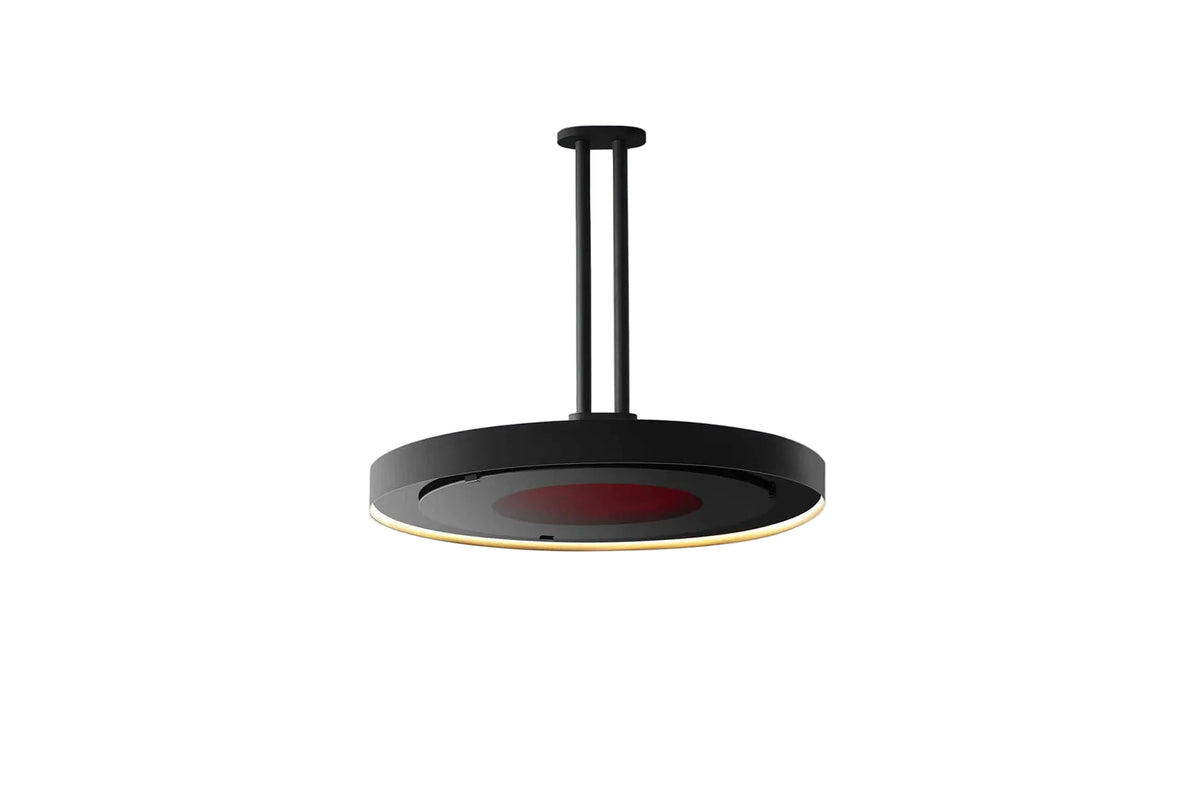

The Bromic Eclipse includes a 24-inch twin mounting pole, providing an elegant suspended installation.
Additional mounting accessories are available separately to accommodate different outdoor layouts and architectural requirements.
- 24" Twin Mounting Pole: Included
- 8" Straight Pole: Optional
- 24" Straight Pole: Optional

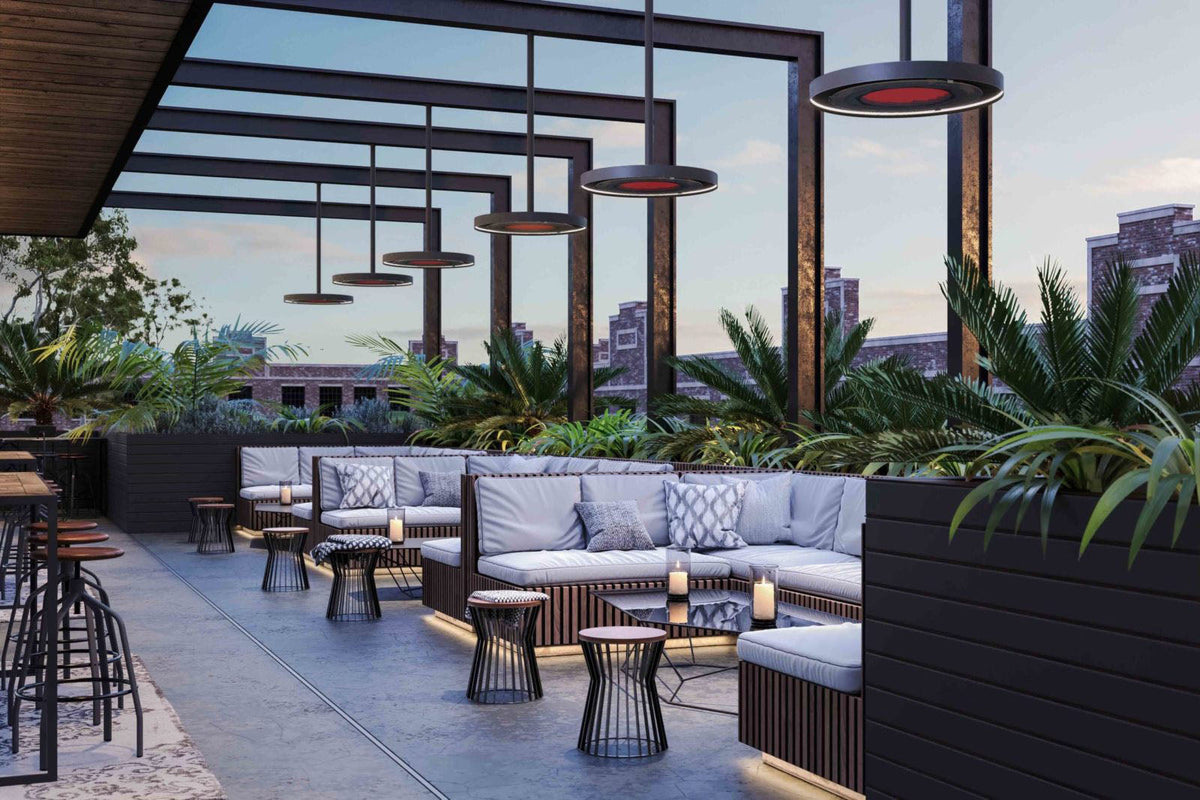

- 48" Straight Pole: Optional
- 24" Curved Pole: Optional

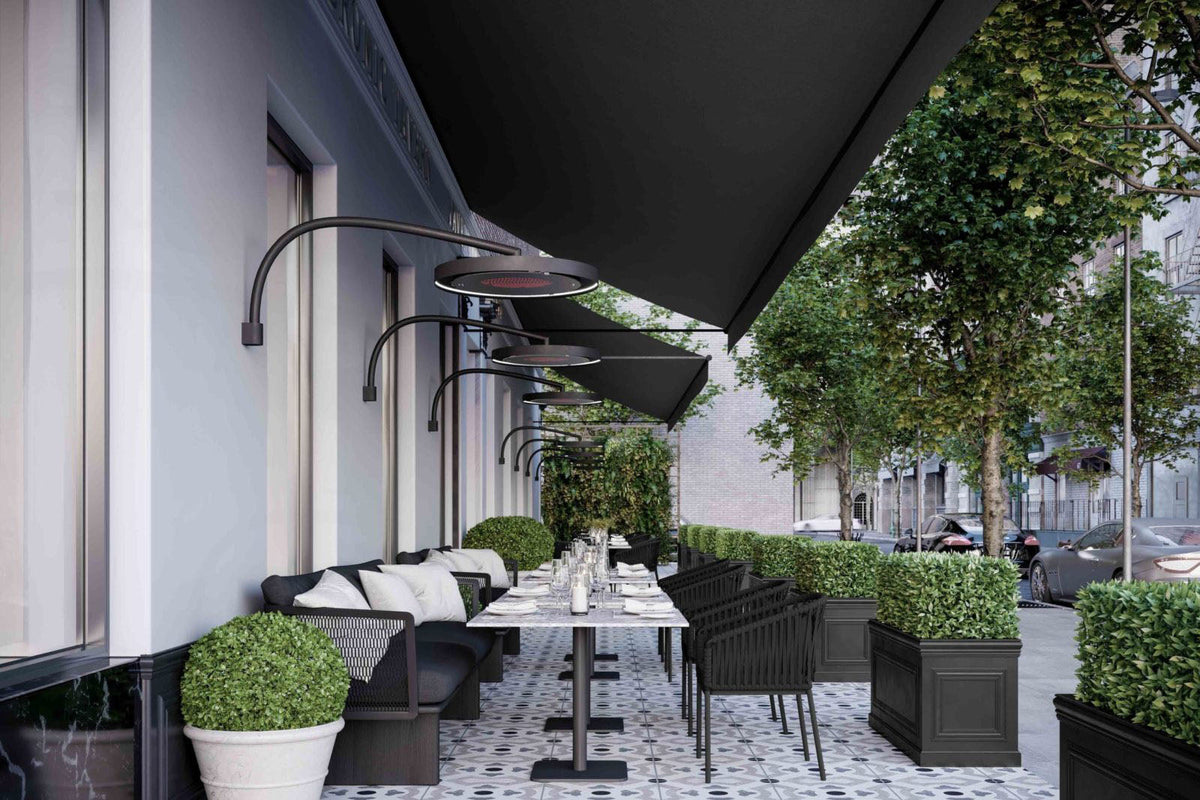

- Wall Mount Pole: Optional
Installation Note: Mounting accessories must be compatible with the selected Eclipse heater and installation configuration. Follow Bromic's approved mounting instructions and clearance requirements.
📋 Technical Specifications
| Brand | Bromic Heating |
| Series | Eclipse Smart-Heat Pendant |
| Model | 3300W Pendant Series |
| Product Type | Electric Infrared Pendant Heater |
| Fuel Type | Electric |
| Heating Power | 3,300W |
| Heat Coverage | Up to 144 Sq. Ft. |
| Operating Voltage | 220–240V |
| Rated Current at 220V | 12.9A |
| Rated Current at 230V | 13.5A |
| Rated Current at 240V | 14.1A |
| Heating Technology | Radiant Infrared |
| Heating Screen | Ceramic |
| Heat Settings | 0%, 33%, 66%, 100% with Compatible Controller |
| LED Light Color | Warm White |
| LED Color Temperature | 3000K |
| LED Brightness | 216.6 Lumens |
| Weather Protection | IP54 |
| Construction | Double-Coated Corrosion-Resistant Steel |
| Finish | Matte Black |
| Mounting Style | Pendant / Optional Wall Mount |
| Included Mount | 24" Twin Pole |
| Minimum Floor Clearance | 96" for Specified Wall / Ceiling Configurations |
| Warranty | 1-Year Limited Manufacturer Warranty |
📏 Product Dimensions
- Heater Disk Diameter: 28 inches
- Heater Disk Height: 2.5 inches
- Mounting Base Width: 4 inches
- Included Mounting Pole: 24-inch Twin Pole
Clearance Notice: The 96-inch minimum floor clearance applies to the specified installation configurations. Additional ceiling, wall, and combustible-material clearances must be verified using the current Bromic installation manual.
🛠️ Professional Installation
The Bromic Eclipse Smart-Heat Pendant Heater requires professional electrical installation.
- Use the appropriate electrical supply and wiring specified by Bromic.
- Install using approved mounting hardware and compatible support structures.
- Follow all minimum mounting heights and clearance requirements.
- Maintain adequate clearance from combustible materials.
- Use only compatible Bromic controllers and accessories.
- Follow applicable national and local electrical codes.
Important: Installation should be performed by a qualified electrician. Consult the official installation manual before selecting mounting hardware or preparing electrical connections.
📦 What's Included
- 1 Bromic Eclipse Smart-Heat 3300W Electric Pendant Heater
- 1 24-Inch Twin Mounting Pole
- Manufacturer-Supplied Installation Components
- Installation & Operating Documentation
Optional Accessories Sold Separately: Eclipse Dimmer Controller, wireless remote, alternative mounting poles, and compatible automation accessories.
📘 User Manuals & Downloads
Access Bromic's installation instructions, technical specifications, smart control documentation, automation resources, and manufacturer warranty information.
- 📐 Download Bromic Eclipse Pendant Specifications Sheet (PDF) – Heating coverage, electrical ratings, product dimensions, and installation specifications.
- 📥 Download Bromic Eclipse Electric Pendant Installation Manual (PDF) – Official installation, mounting, electrical connection, operating, and safety instructions.
- 🏠 Download Bromic Smart-Heat Home Automation Flyer (PDF) – Information about compatible Smart-Heat automation options.
- 🎛️ Download Bromic Smart-Heat Link Automation Installation Manual (PDF) – Installation and configuration guidance for compatible automation accessories.
- 🛡️ Download Bromic Heating Manufacturer Warranty (PDF) – Manufacturer warranty terms, coverage, exclusions, and service information.
Manual Compatibility: These resources relate to the Bromic Eclipse Smart-Heat Electric Pendant Series. Verify the selected model and compatible controller before installation.
❓ Frequently Asked Questions
Q: How much space does the Bromic Eclipse Pendant Heater warm?
A: The 3300W Eclipse provides radiant heating coverage for outdoor areas up to approximately 144 square feet under suitable conditions.
Q: Does the heater include LED lighting?
A: Yes. It features integrated warm white LED lighting with a 3000K color temperature and dimmable functionality when paired with compatible controls.
Q: Can I adjust the heat output?
A: Yes. With the compatible optional Eclipse Dimmer Controller, you can select 0%, 33%, 66%, or 100% heating output.
Q: Is the wireless remote included?
A: No. The compatible controller and wireless remote are optional accessories unless specifically included in the selected package.
Q: Can the Eclipse be mounted on a ceiling?
A: Yes. The heater includes a 24-inch twin mounting pole for compatible suspended installations. Additional mounting accessories are available separately.
Q: Can it be installed on a wall?
A: Yes, with an appropriate compatible Bromic wall mounting accessory and installation that meets all clearance requirements.
Q: Is the heater weather-resistant?
A: Yes. The Eclipse features corrosion-resistant double-coated steel construction and an IP54 weather protection rating.
Q: Does it require professional installation?
A: Yes. A qualified electrician should complete the electrical installation according to Bromic's instructions and applicable electrical codes.
Q: Can it be used in commercial outdoor spaces?
A: Yes. The Eclipse is designed for suitable residential and commercial outdoor heating applications.
🛡️ Manufacturer Warranty – 1 Year
The Bromic Eclipse Smart-Heat 3300W Electric Pendant Heater includes a 1-year limited manufacturer warranty, subject to Bromic Heating's terms and conditions.
Warranty coverage, exclusions, and service requirements are determined by the manufacturer.
📥 View Manufacturer Warranty Terms (PDF)
Shipping & Returns
🚚 Flat-Rate Shipping: $99.00
A flat-rate shipping charge of $99.00 applies to this item.
Shipping is available within the contiguous United States. We do not ship to Alaska, Hawaii, or Puerto Rico.
↩️ 30-Day Returns
This item qualifies for 30-day returns, subject to Backyard Perch's return policy.
Returns must meet applicable eligibility, condition, and authorization requirements. Please review our store return policy for complete details.
⚠️ Important Heater Safety
- Professional electrical installation is required.
- Follow all manufacturer-specified mounting heights and clearances.
- Keep combustible materials away from the heater.
- Use only approved mounting poles and compatible electrical accessories.
- Do not cover or obstruct the heating surface.
- Do not install in locations prohibited by the manufacturer.
- Disconnect electrical power before servicing.
- Follow the current Bromic installation and operating manual.
✨ Radiant Warmth. Beautiful Illumination. Elevated Outdoor Living.
Experience the perfect combination of comfort and contemporary design with the Bromic Eclipse Smart-Heat 3300W Electric Pendant Heater. With powerful infrared warmth, integrated dimmable LED lighting, elegant matte black styling, and flexible mounting options, the Eclipse creates an inviting atmosphere for unforgettable outdoor evenings.
Bring premium outdoor heating and sophisticated ambiance to your space. Shop the Bromic Eclipse Smart-Heat Pendant Heater at Backyard Perch today!
Bromic Heaters Eclipse Smart-Heat Radiant Infrared Outdoor Electric Heater
Features
- Flexible Mounting Options – Includes a 24" twin pole and is compatible with optional wall and ceiling mounting poles to accommodate a variety of outdoor installations.
- Premium Construction – Built from corrosion-resistant, double-coated steel for exceptional durability with an IP54 weather protection rating and wind-resistant design.
- Modern Pendant Design – Elegant matte black finish and sleek circular profile create a sophisticated focal point for patios, decks, restaurants, and outdoor living spaces.
- Even Radiant Heat Distribution – Ceramic screen spreads infrared heat evenly while minimizing visible light from the heating element.
- Adjustable Heat Levels – Select from four heat output settings (0%, 33%, 66%, and 100%) for personalized comfort.
- Integrated Dimmable LED Lighting – Warm white LED lighting with adjustable brightness creates the perfect outdoor ambiance.
- Smart Control Ready – Compatible with the optional Bromic Smart-Heat™ Eclipse Dimmer Controller and wireless remote for convenient control of both heat and lighting.
Product Overview
The Bromic Eclipse Smart-Heat™ 3300W Electric Pendant Heater combines radiant outdoor heating with integrated dimmable LED lighting to create a comfortable and inviting atmosphere long after the sun goes down. Its distinctive circular pendant design and matte black finish make it both a functional heater and an elegant architectural feature for premium residential and commercial outdoor spaces.
Designed with a ceramic screen, the Eclipse evenly distributes radiant heat while reducing visible light from the heating element for a more comfortable experience. The built-in warm white LED lighting rail provides adjustable illumination, allowing you to easily transition from dining to evening entertaining without additional lighting fixtures.
The included 24-inch twin pole provides a stylish suspended installation, while optional wall and ceiling mounting poles offer additional installation flexibility. Pair the Eclipse with the optional Bromic Smart-Heat™ Eclipse Dimmer Controller and wireless remote to conveniently adjust both heat output and lighting levels from anywhere in your outdoor space.
What's Included
- Bromic Eclipse Smart-Heat™ 3300W Electric Pendant Heater
- 24" Twin Mounting Pole
Mounting Options
- Included 24" Twin Pole Pendant Mount
- Optional Ceiling Mount Poles
- Optional Wall Mount Poles
Heat Coverage
Provides comfortable radiant heat for outdoor spaces up to 144 sq. ft.
Specifications
| Specification | Details |
|---|---|
| Brand | Bromic |
| Model | Eclipse 3300W Pendant Series |
| Fuel Type | Electric |
| Color | Matte Black |
| Heat Coverage | Up to 144 sq. ft. |
| Heating Power | 3,300 W |
| Current | 12.9 A (220V) • 13.5 A (230V) • 14.1 A (240V) |
| Minimum Floor Clearance | Wall: 96" • Ceiling: 96" |
| LED Light Color | Warm White (Dimmable) |
| LED Color Temperature | 3000K |
| LED Output | 216.6 Lumens |
| Weather Rating | IP54 |
| Warranty | 1 Year |
Dimensions
| Dimension | Measurement |
| Disk Diameter | 28" |
| Disk Height | 2.5" |
| Mounting Base Width | 4" |
Installation Downloads
- Heater Specifications Sheet
- Installation Manual
- Smart-Heat™ Automation Flyer
- Smart-Heat™ Automation Manual
WHAT IS INCLUDED
- Disk Heater
- 24'' Twin Pole
MOUNTING OPTIONS
The Eclipse Series comes with 24" twin pole, that can be changed with a wide range of optional mounting poles to compliment any décor and provide functionality:
HEAT BLOOMS
The 3300W Eclipse Series Heats approximately 144 sqft with 3,300 W Heating Power.
| HEATER SPECS | |
|---|---|
| Brand | Bromic |
| Model | Eclipse. 3300w Pendant Series |
| Fuel Type | Electric |
| Color | Matte Black |
| Heat Area | 144 sqft |
| Current & Voltage |
12.9 A (220V) 13.5 A (230V) 14.1 A (240V) |
| Min Floor Clearance | Wall 96'' | Ceiling 96'' |
| LED Color | Warm White / Dimmable |
| LED Temperature | 3,000K |
| LED Lumens | 216.6 |
| HEATER DIMENSIONS | |
|---|---|
| Disk Diameter | 28'' |
| Disk Height | 2.5'' |
| Mounting Base Width | 4'' |
| Warranty | 1 Year |
INSTALL DOWNLOADS & GRAPHICS
CLEARANCES
DEMO VIDEO
ABOUT BROMIC HEATING
BROMIC REVIEW. TALON BAR NEW YORK
WARRANTY
Your newly purchased Product is covered by the Manufacture Limited Warranty, subject to Terms and Conditions. View full Manufacture Limited Warranty below.
