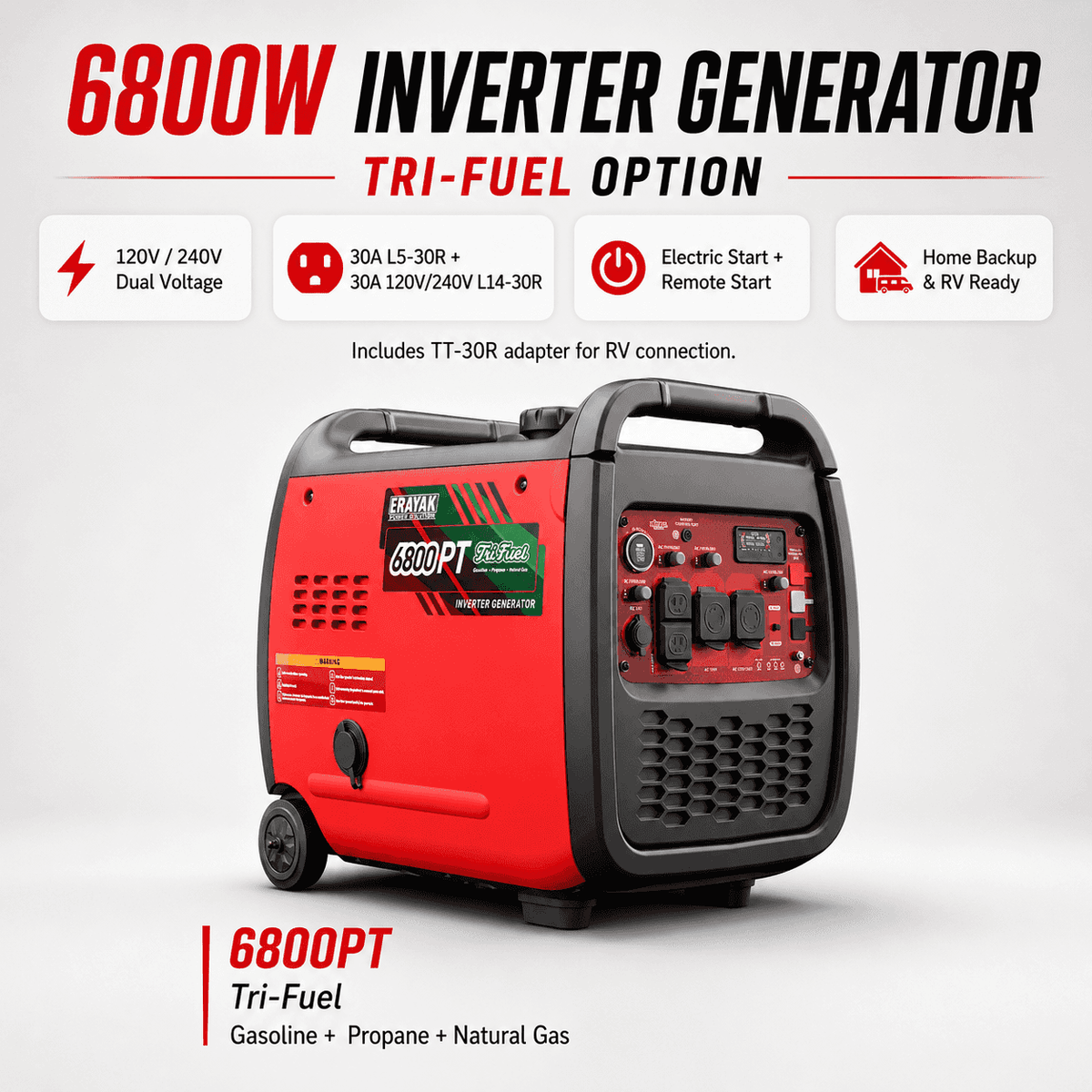

ERAYAK 6800PT Tri-Fuel Inverter Generator – 6,800W Peak, 120V/240V Home Backup & RV Power
Power your adventures, prepare for unexpected outages, and enjoy greater energy flexibility with the ERAYAK 6800PT Tri-Fuel Inverter Generator. Delivering up to 6,800 peak watts and 5,000 running watts on gasoline, this versatile generator operates on gasoline, propane, or natural gas, giving you three convenient ways to power essential equipment.
Designed for RV camping, selected home backup circuits, outdoor projects, and portable power applications, the ERAYAK 6800PT combines 120V/240V output, convenient remote and electric starting, efficient inverter technology, and practical power management in one dependable unit.
Key Features & Benefits
- Tri-Fuel Operation: Choose gasoline, propane, or natural gas to suit your power needs and fuel availability.
- Up to 6,800 Peak Watts: Delivers 5,000 running watts on gasoline for compatible appliances, tools, and backup equipment.
- 120V/240V Dual-Voltage Output: Supports a variety of RV, household, and selected 240V applications.
- Three Starting Methods: Wireless remote start, one-touch electric start, and manual recoil backup.

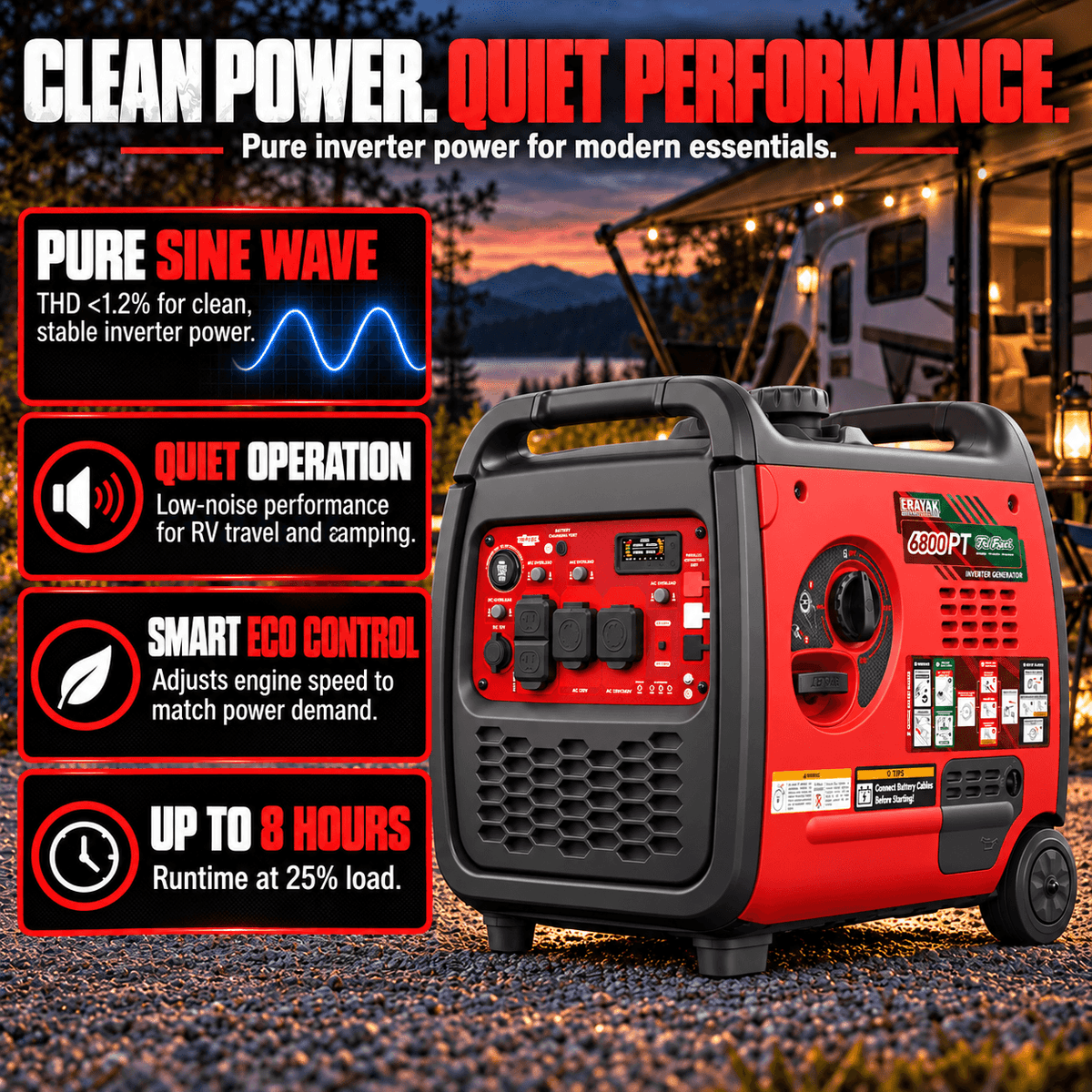

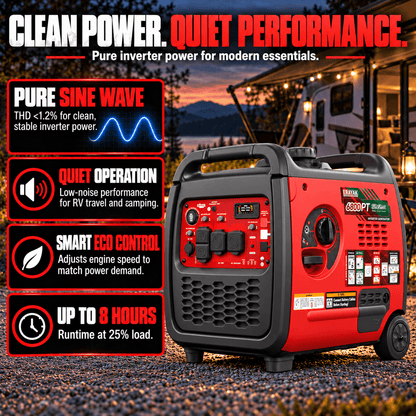

- Inverter Technology: Provides low-distortion electrical output for compatible electronics and equipment.
- ECO Mode: Adjusts engine speed according to electrical demand to help manage fuel consumption and operating noise.
- 30A RV Adapter Included: Connect compatible 120V 30A RV power cords using the supplied adapter.
- Safety Protection: Includes low-oil protection, overload protection, and carbon monoxide shutdown technology.
- Portable Design: Compact generator platform weighing approximately 90.4 pounds.

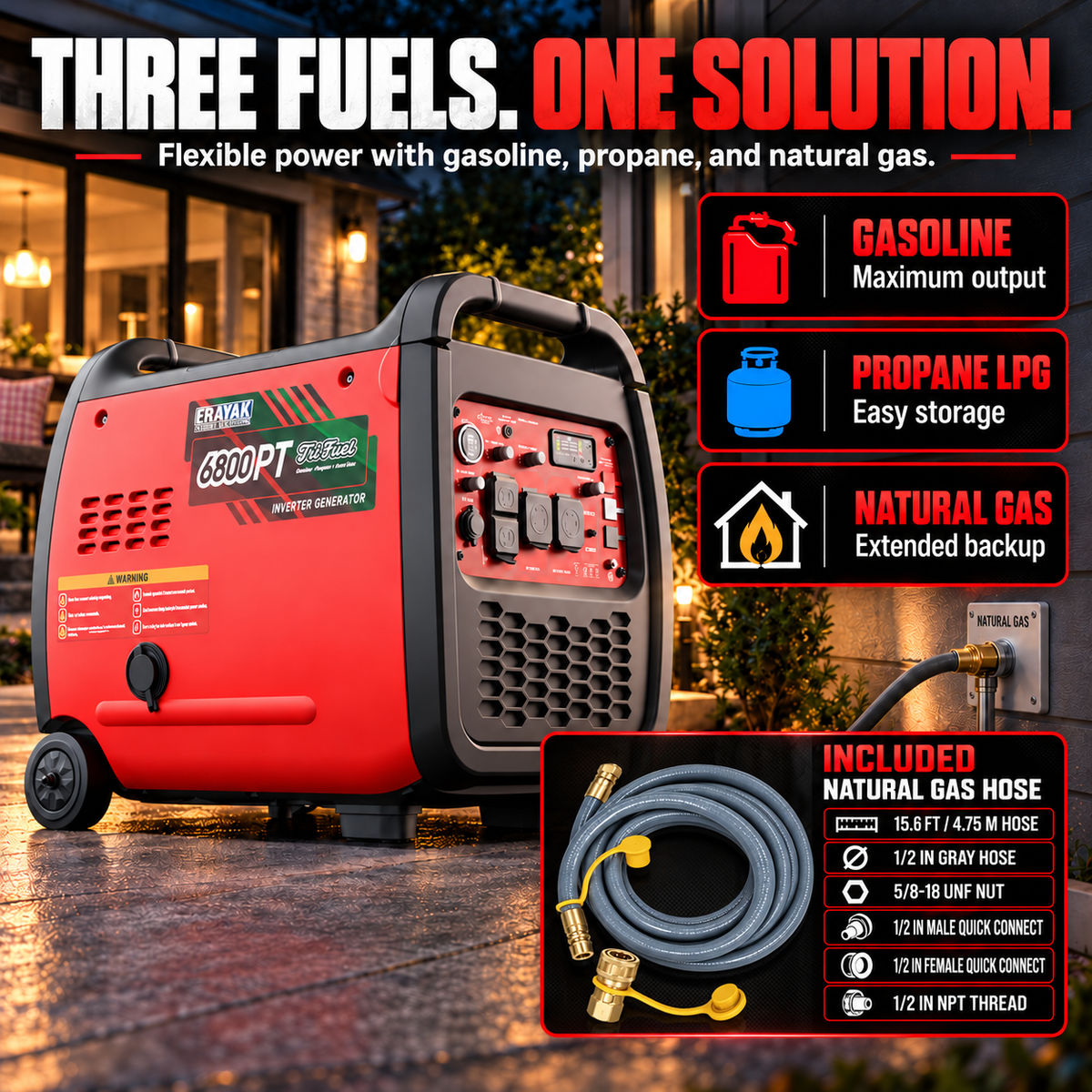

Three Fuel Options for Greater Flexibility
The ERAYAK 6800PT allows you to select the fuel source that best matches your needs. Each fuel delivers a different power output, making it important to plan your electrical loads accordingly.
| Fuel Type | Peak Power | Running Power |
|---|---|---|
| Gasoline | 6,800W | 5,000W |
| Propane (LPG) | 6,100W | 4,500W |
| Natural Gas | 5,400W | 4,000W |
Gasoline: Provides the generator's highest rated power output and is well suited for demanding portable power applications.
Propane: Offers a convenient alternative fuel option for RV trips, emergency preparation, and portable backup needs. A propane hose with regulator is included.
Natural Gas: Adds flexibility for compatible home backup installations using an appropriately configured natural gas supply. A natural gas hose is included with the 6800PT.
Important: Peak wattage is available only temporarily. Continuous electrical loads must remain within the running wattage for the selected fuel.

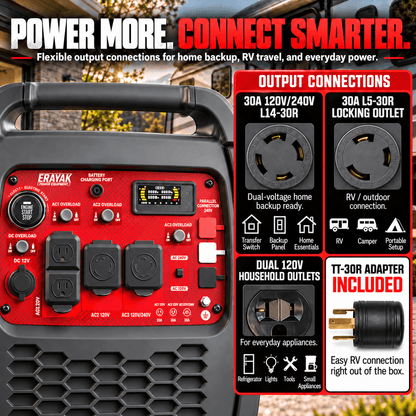

Versatile 120V/240V Power Connections
Connect compatible equipment using the generator's multiple electrical outlets and included RV adapter.
- NEMA L14-30R: One 120V/240V 30A locking outlet for compatible dual-voltage equipment and selected home backup circuits.
- NEMA L5-30R: One 120V 30A locking outlet for compatible high-current equipment and RV connections.
- Dual 120V Household Outlets: Two 20A household-style receptacles for compatible appliances, electronics, chargers, and tools.
- RV Adapter: Included L5-30P to TT-30R adapter for compatible 120V 30A RV connections.
- Additional Connections: 12V DC output, USB charging, parallel connection interface, and grounding terminal.
Connection Note: The ERAYAK 6800PT does not have a built-in 50A receptacle. The included RV adapter does not increase generator wattage or provide full 50A RV service. Total generator output is shared across its outlets, and individual circuit limits apply.
Ideal for Home Backup, RV Camping & Outdoor Projects
From unexpected power interruptions to weekend adventures, the ERAYAK 6800PT offers flexible electricity for a variety of applications.
- Home Backup: Power selected essential circuits using properly installed transfer equipment.
- RV Camping: Support compatible RV air conditioners, lighting, appliances, and charging equipment.
- Outdoor Work: Operate compatible portable tools, battery chargers, and work equipment.
- Workshops: Supply electricity for selected tools and equipment within the generator's rated capacity.
- Everyday Essentials: Support compatible refrigerators, freezers, routers, lighting, and electronics during power interruptions.
Always verify appliance starting wattage, running wattage, voltage requirements, and total connected electrical load before use.

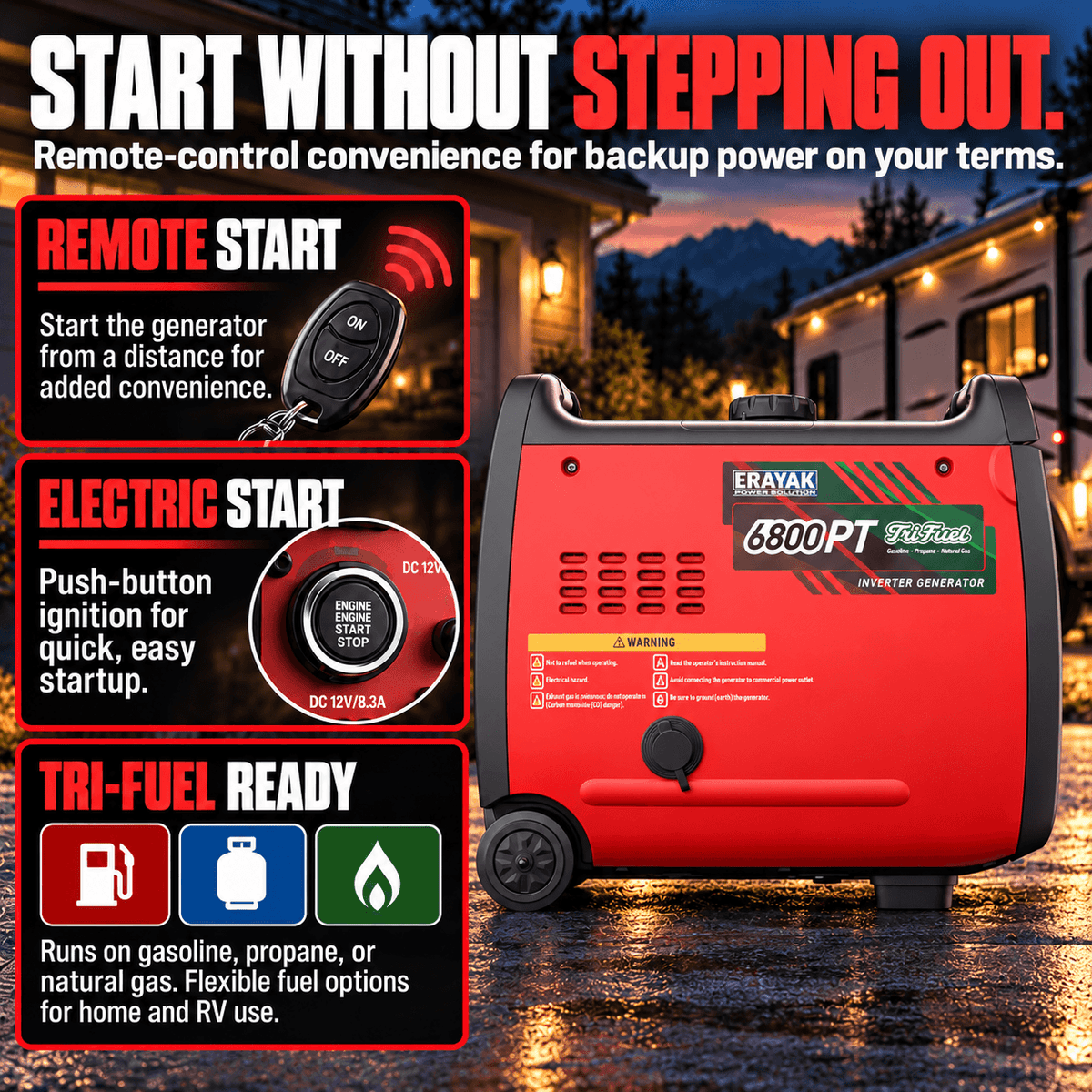

Convenient Remote & Electric Starting
Enjoy flexible starting options with the ERAYAK 6800PT. Start the generator using the wireless remote controller or one-touch electric starting system. A manual recoil starter provides an additional backup starting method.
The generator's ECO Mode automatically adjusts engine speed in response to electrical demand, helping manage fuel consumption and operating noise. For equipment with high starting surges, ECO Mode may need to be disabled.
Gasoline Runtime
The integrated 2.9-gallon gasoline fuel tank offers practical runtime for portable and emergency power applications.
| Electrical Load | Approximate Runtime |
|---|---|
| 25% Load | 10–12 Hours |
| 50% Load | 7–8 Hours |
| Rated Load | 4–5 Hours |
Runtime estimates are based on published gasoline operating conditions. Actual runtime varies with load, maintenance, temperature, altitude, and operating conditions.
Technical Specifications
| Brand | ERAYAK |
|---|---|
| Model | 6800PT |
| Generator Type | Tri-Fuel Inverter Generator |
| Fuel Options | Gasoline, Propane, Natural Gas |
| Gasoline Peak / Running | 6,800W / 5,000W |
| Propane Peak / Running | 6,100W / 4,500W |
| Natural Gas Peak / Running | 5,400W / 4,000W |
| Rated Voltage | 120V / 240V |
| Frequency | 60Hz |
| Phase | Single Phase |
| Engine Displacement | 223cc |
| Fuel Tank Capacity | 2.9 US Gallons (11L) |
| Engine Oil Capacity | Approximately 0.65L |
| Starting System | Remote, Electric, Recoil |
| 120V/240V Outlet | 1 × NEMA L14-30R |
| 120V 30A Outlet | 1 × NEMA L5-30R |
| Household Outlets | 2 × 120V Receptacles |
| DC Output | 12V / 8.3A |
| RV Adapter | L5-30P to TT-30R Included |
| ECO Mode | Yes |
| Protection | Low Oil, Overload, CO Shutdown |
| Published Noise Level | 68 dB Under Manufacturer Conditions |

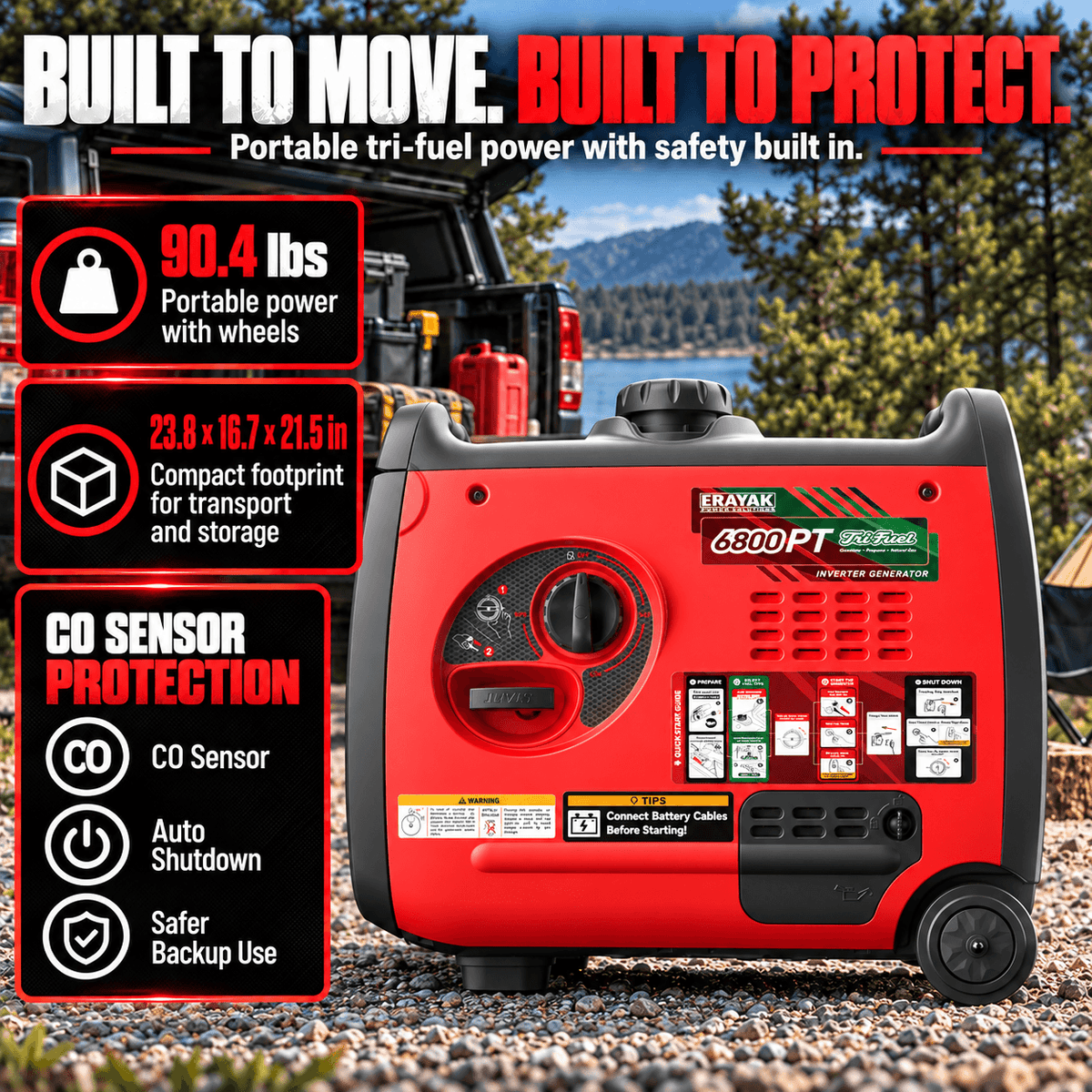

| Dimensions | 23.8 × 16.7 × 21.5 Inches |
| Weight | 90.4 lb (41 kg) |
| Compliance | EPA & CARB Compliant |

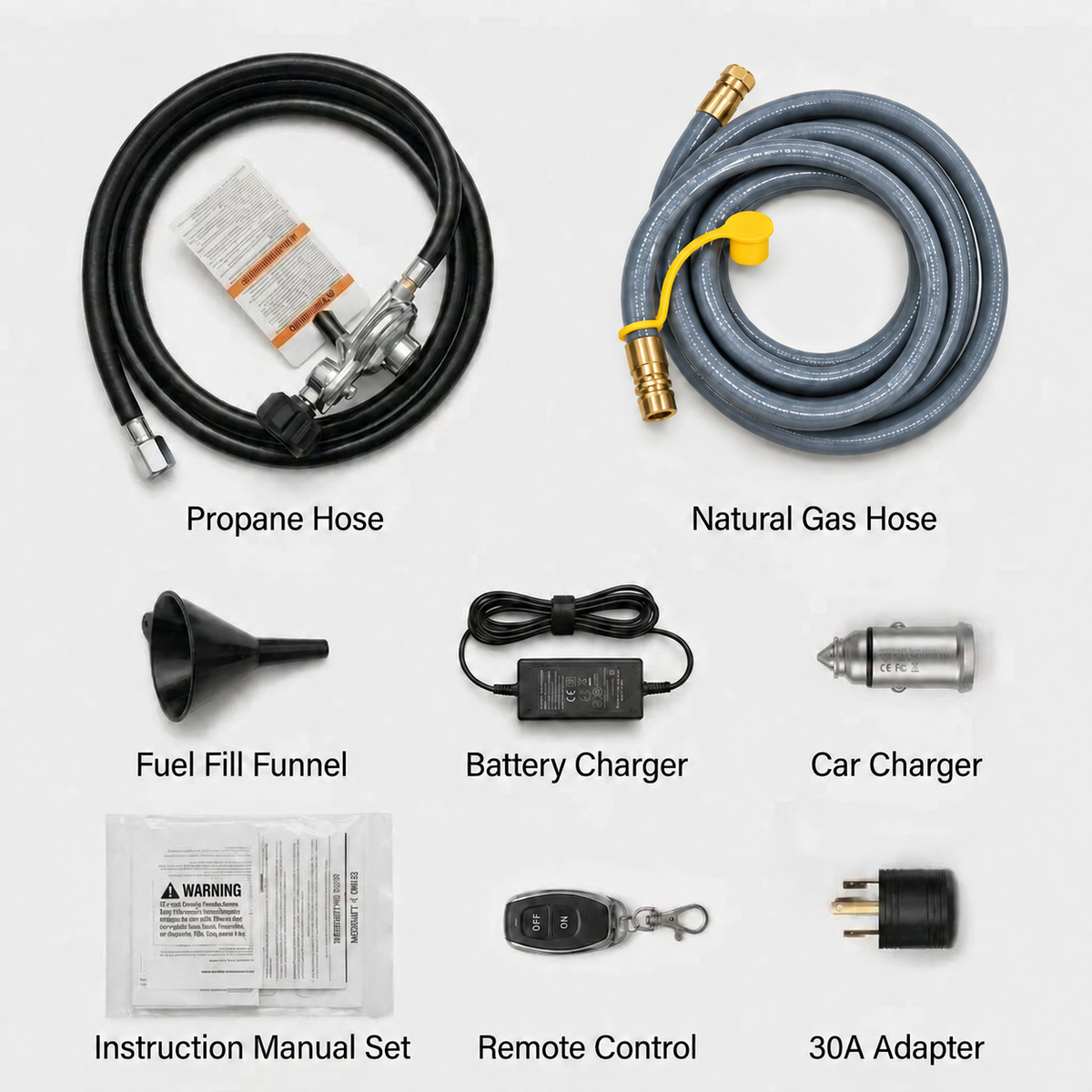

What's Included
- 1 × ERAYAK 6800PT Tri-Fuel Inverter Generator
- 1 × Propane LPG Hose with Regulator
- 1 × Natural Gas Hose
- 1 × Wireless Remote Controller
- 1 × Battery Charger
- 1 × Fuel Fill Funnel
- 1 × Car Charger
- 1 × L5-30P to TT-30R RV Adapter
- Instruction Manual Set
Care & Maintenance
Regular maintenance helps support dependable operation and long-term generator performance.
- Check engine oil before each use.
- Inspect the air filter regularly and clean or replace it as required.
- Inspect and maintain the spark plug according to the manufacturer's schedule.
- Keep ventilation openings free from debris.
- Inspect fuel hoses and connections before operation.
- Follow the owner's manual for oil changes, storage, and scheduled maintenance.
Important Generator Safety Information
WARNING: Carbon monoxide from generator exhaust can cause serious injury or death.
- Operate the generator outdoors only, at least 20 feet from doors, windows, and vents, with exhaust directed away from occupied buildings.
- Never operate inside a home, garage, shed, RV, tent, or enclosed or partially enclosed space.
- Use functioning carbon monoxide alarms inside occupied buildings.
- Do not operate in rain, standing water, or flooded conditions.
- Never refuel a running or hot generator.
- Use properly rated electrical cords, adapters, and connection equipment.
- Never connect the generator directly to a household wall outlet or backfeed household wiring.
- Use approved transfer equipment installed by a qualified electrician for home backup applications.
- Have natural gas connections evaluated and installed by qualified professionals according to applicable codes.
- Always follow the current ERAYAK owner's manual and all applicable electrical and fuel safety requirements.
ERAYAK 6800PT Owner's Manual
For detailed setup instructions, operating procedures, fuel connections, troubleshooting, maintenance schedules, and safety information, access the manufacturer's official manual library.
View ERAYAK 6800PT Owner's Manual – Official Manual Library
Locate model 6800PT under the 6800W–7500W Home & Backup section, then select the available manual preview or PDF download. Confirm that the manual matches your generator's model label.
Why Choose the ERAYAK 6800PT?
When dependable portable power matters, flexibility makes all the difference. The ERAYAK 6800PT brings together three fuel choices, substantial power output, convenient starting methods, and versatile 120V/240V connections to help you prepare for outages, enjoy RV travel, and tackle outdoor projects.
Power with confidence and prepare for what comes next. Explore the ERAYAK 6800PT Tri-Fuel Inverter Generator at Backyard Perch and discover a versatile power solution for your home, RV, and outdoor adventures.
Three Fuels.
Endless Possibilities.
Meet the ERAYAK 6800PT tri-fuel inverter generator. Choose gasoline, propane, or natural gas for flexible backup power. With up to 6,800 peak watts on gasoline, 120V/240V output, remote and electric starting, the 6800PT is built for RV camping, selected home backup circuits, outdoor work and extended outage planning.
Three Fuel Options. Total Flexibility.
Gasoline, propane and natural gas flexibility with convenient starting methods and 120V/240V capability for a wider range of power applications.
Gasoline + LPG + NG
Three fuel choices let you adapt to fuel availability, RV trips and home backup needs.
120V / 240V Output
Supports compatible household, RV and selected 240V backup applications with proper equipment.
3 Starting Methods
Remote start, one-touch electric start and recoil backup for convenient operation.
Natural Gas Ready
Use a properly configured natural gas supply for more backup fuel flexibility.
ECO Mode
Adjusts engine speed based on electrical load to help manage fuel consumption and noise.
30A RV Adapter Included
Connect compatible 30A RV cords using the included L5-30P to TT-30R adapter.

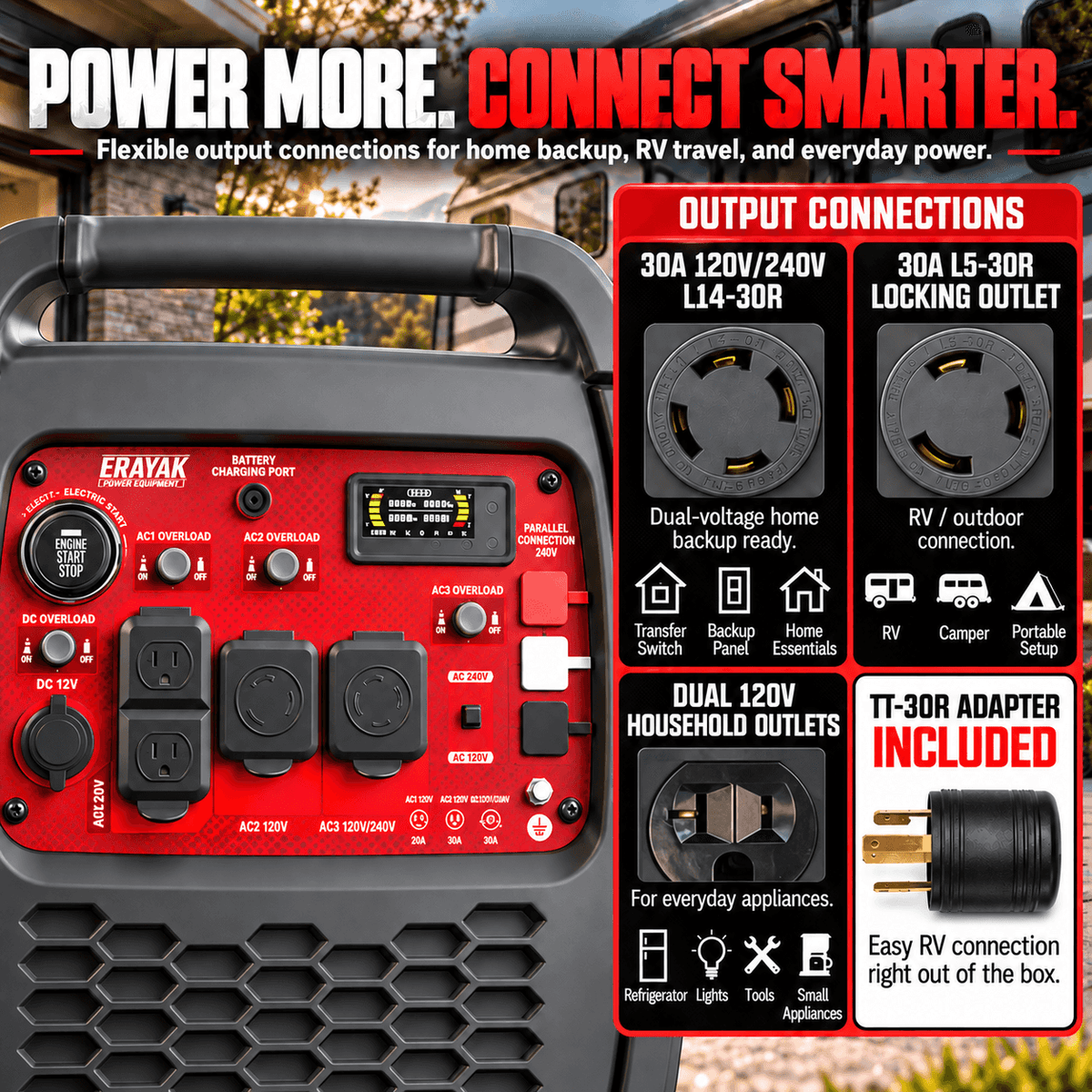

Your Versatile Power Hub.
Two distinct 30A generator outlets, dual household outlets and an included RV adapter offer flexible connections for compatible RV, home backup and portable loads.
30A · 120/240V
One NEMA L14-30R locking outlet for compatible 120V/240V equipment and selected home backup circuits through approved transfer equipment.
Connector: NEMA L14-30R
240V / 30A: 7,200W theoretical receptacle limit
Actual Output: Limited by the selected fuel, generator and breaker ratings.
30A · 120V L5-30R
One dedicated 120V 30A locking outlet for compatible equipment and 30A RV connections through the included RV adapter.
Maximum: 3,600W theoretical at 120V / 30A
Actual output is subject to the breaker, voltage configuration and generator limits.
Dual 120V · 20A Outlets
Two 120V household-style receptacles for compatible electronics, chargers, appliances and tools.
20A Circuit: 2,400W theoretical at 120V
Actual combined loading depends on shared circuit and breaker configuration.
30A RV Adapter
The included L5-30P to TT-30R adapter lets compatible 30A RV power cords connect to the generator's L5-30R outlet.
RV Voltage: 120V only
Does not create 240V output or increase generator wattage.
Three Fuels. Three Power Levels.
Gasoline, propane and natural gas deliver different running and starting wattages. Choose the fuel that fits your setup and plan connected loads accordingly.
Gasoline Running Power
Delivers up to 5,000W of continuous rated output with up to 6,800W temporary peak power. Ideal when your managed load plan requires the generator's highest published power rating.
Propane Running Power
Delivers up to 4,500W of continuous rated output with up to 6,100W temporary peak power. Propane provides convenient stored-fuel flexibility for compatible RV and backup setups.
Natural Gas Running Power
Delivers up to 4,000W of continuous rated output with up to 5,400W temporary peak power. A suitable fixed natural gas supply can provide another option for longer-duration outage planning.
The 6800PT supports three different fuel sources. It includes a propane hose with regulator and a natural gas hose. Use only the correct fuel connections and operating procedures described in the owner's manual. Natural gas supply pressure, gas flow, piping capacity and connection requirements must be verified before use.
Power Planning: Gasoline: 6,800W peak / 5,000W running. Propane: 6,100W peak / 4,500W running. Natural Gas: 5,400W peak / 4,000W running. Peak wattages are temporary ratings and should not be used as continuous load limits. The total generator capacity is shared across its outlets. Individual receptacle and breaker ratings still apply. For 120V/240V configurations, observe the actual voltage mode, circuit limits and electrical leg-load requirements.
Three Fuels.
More Possibilities.
From RV camping and outdoor work to selected household backup circuits, ERAYAK 6800PT offers flexible tri-fuel power for a wide variety of uses.
RV Camping
Compatible 30A RV electrical setups
Home Backup
Selected essential household circuits
Jobsite
Compatible tools and equipment
Workshop
Portable workshop power needs
Electronics
TVs, routers and charging
Plan Your Power.
Explore 10 common high-demand appliances, ranked by estimated starting watts. Always check actual starting and running requirements before connecting your equipment.
Power Planning Note: Wattages shown are illustrative estimates, not guaranteed appliance specifications. Actual motor starting surge may vary significantly, even between appliances with the same horsepower or BTU rating. The ERAYAK 6800PT provides: 6,800W peak / 5,000W running on gasoline; 6,100W peak / 4,500W running on propane; and 5,400W peak / 4,000W running on natural gas. Some appliances near these peak limits may not start successfully, especially when other loads are connected. A compatible soft starter may be required for certain air-conditioning systems. Check the appliance nameplate, generator voltage mode, individual outlet limits, electrical-leg balance, and total connected load before use.
Flexible Fuel. Reliable Control.
Remote & Electric Start
Start the generator with the remote controller or one-touch electric start. Manual recoil backup provides an additional starting method.
Gasoline Runtime
With the 2.9 gal gasoline tank, published approximate runtime is 10–12 hours at 25% load, 7–8 hours at 50% load, or 4–5 hours at rated load.
Propane Fuel Setup
The 6800PT includes a propane LPG hose with regulator. Connect a compatible propane cylinder using the provided hardware according to the owner's manual.

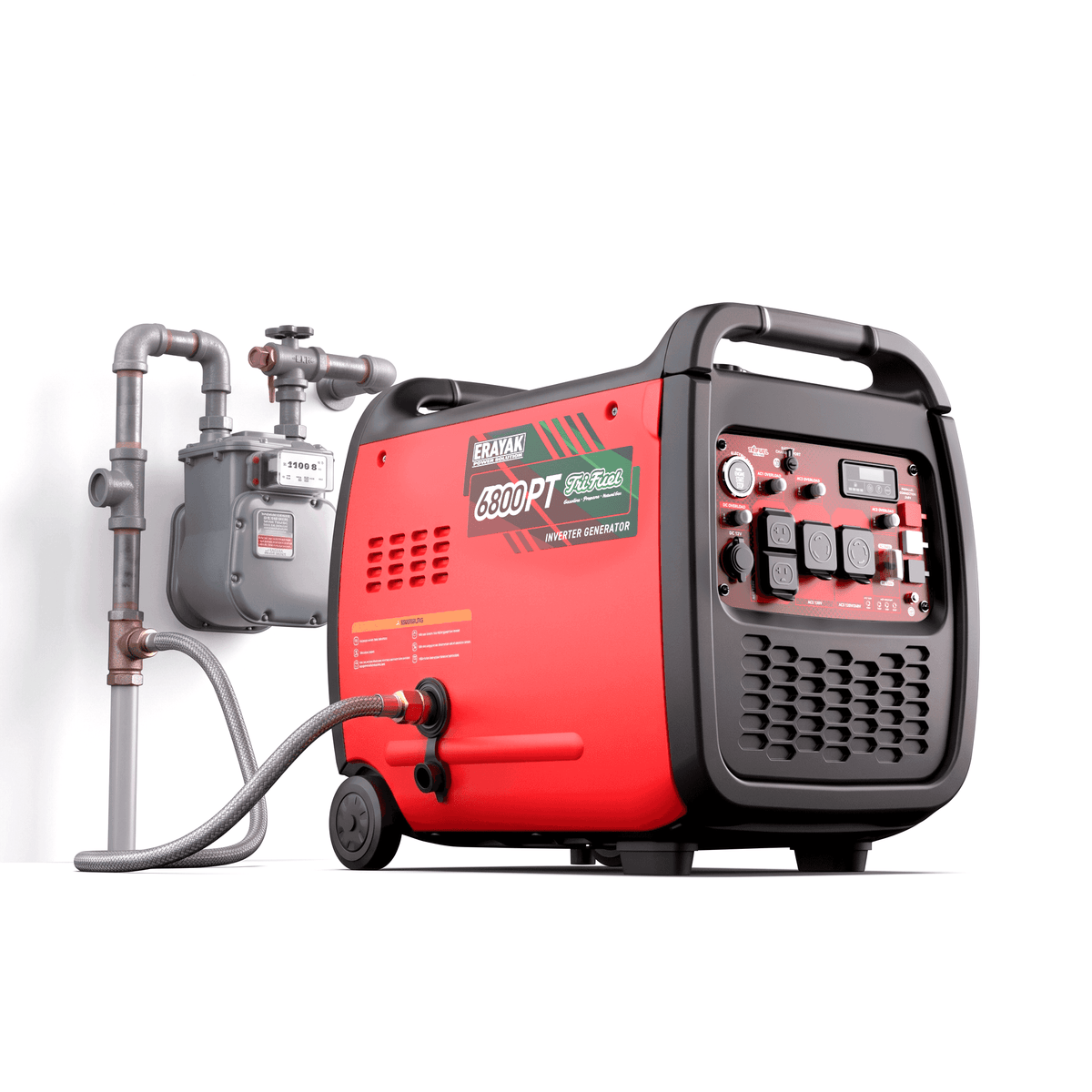

Natural Gas Connection
The 6800PT includes a natural gas hose. Have the gas supply, pressure, flow and connection evaluated by a qualified professional according to local codes.
ECO Mode
Engine speed adjusts to electrical demand to help reduce fuel consumption and operating noise. Disable ECO mode when needed for high-surge motor starting.
Protection & Monitoring
Low-oil protection, overload protection and CO shutdown help protect the generator. Follow panel indicators and the owner's manual when a shutdown occurs.
Additional Specifications: Engine displacement: 223cc. Engine oil capacity: approximately 0.65L (0.17 US gal). DC output: 12V / 8.3A. Dimensions: 23.8 × 16.7 × 21.5 in. Weight: 90.4 lb. Published noise level: 68 dB under stated manufacturer conditions. Runtime, available power and fuel consumption vary with electrical load, fuel type, ambient temperature, altitude and maintenance conditions.
Connect Your Power the Right Way.
Use the included RV adapter with the L5-30R outlet for compatible 30A RV connections. For selected home backup circuits, use the L14-30R through properly rated transfer equipment. Natural gas connections require an appropriately configured gas supply.
Choose Your Fuel
Prepare gasoline, propane or natural gas according to the owner's manual. Confirm fuel availability and available generator output for your selected fuel. Natural gas supply connections should be evaluated by a qualified professional.
Connect Your RV Adapter
With the generator stopped and RV electrical loads off, insert the included L5-30P to TT-30R adapter into the generator's 120V L5-30R receptacle. Connect a compatible 30A RV power cord.
Start & Manage Power
Start the generator using the electric, remote or recoil starting procedure. Allow output to stabilize, then add electrical loads gradually. Monitor total load and fuel-dependent power limits.
120V/240V Home Backup Connection
The NEMA L14-30R outlet can support compatible selected household circuits through an appropriately rated power inlet and approved transfer switch or interlock. Have a qualified electrician evaluate the connection, voltage requirements, neutral and grounding configuration, circuit ratings and electrical-leg balance. The generator must never be connected directly to a household wall receptacle to backfeed the home.
Natural Gas Home Backup Planning
The 6800PT can operate on a compatible natural gas supply, with a rated running output of 4,000W. The supplied gas pressure, flow rate, piping capacity and connection hardware must meet the manufacturer's requirements. Natural gas plumbing and connection work should be performed by qualified professionals under applicable local codes. Natural gas availability does not guarantee uninterrupted operation during every outage.
RV Compatibility: The included L5-30P to TT-30R adapter is intended for compatible 120V 30A RV connections. It does not provide full 50A RV service, create 240V through the L5-30R, or increase the generator's available electrical output. Check the RV cord rating, air conditioner starting surge and total connected load before operation.
Operate the generator outdoors only, at least 20 ft from doors, windows and vents, with exhaust directed away from occupied buildings. Never operate inside an RV, tent, house, garage, shed or any enclosed or partially enclosed space. Use working carbon monoxide alarms inside occupied buildings. Keep the generator dry and do not operate in rain, standing water or flooded conditions. Never refuel a hot or running engine. Install propane and natural gas connections using the correct manufacturer-specified equipment. Check gas connections for leaks according to approved procedures. Use properly rated cords, adapters and transfer equipment. Never backfeed household wiring. Always follow the current ERAYAK 6800 Series owner's manual and applicable electrical and gas safety requirements.
