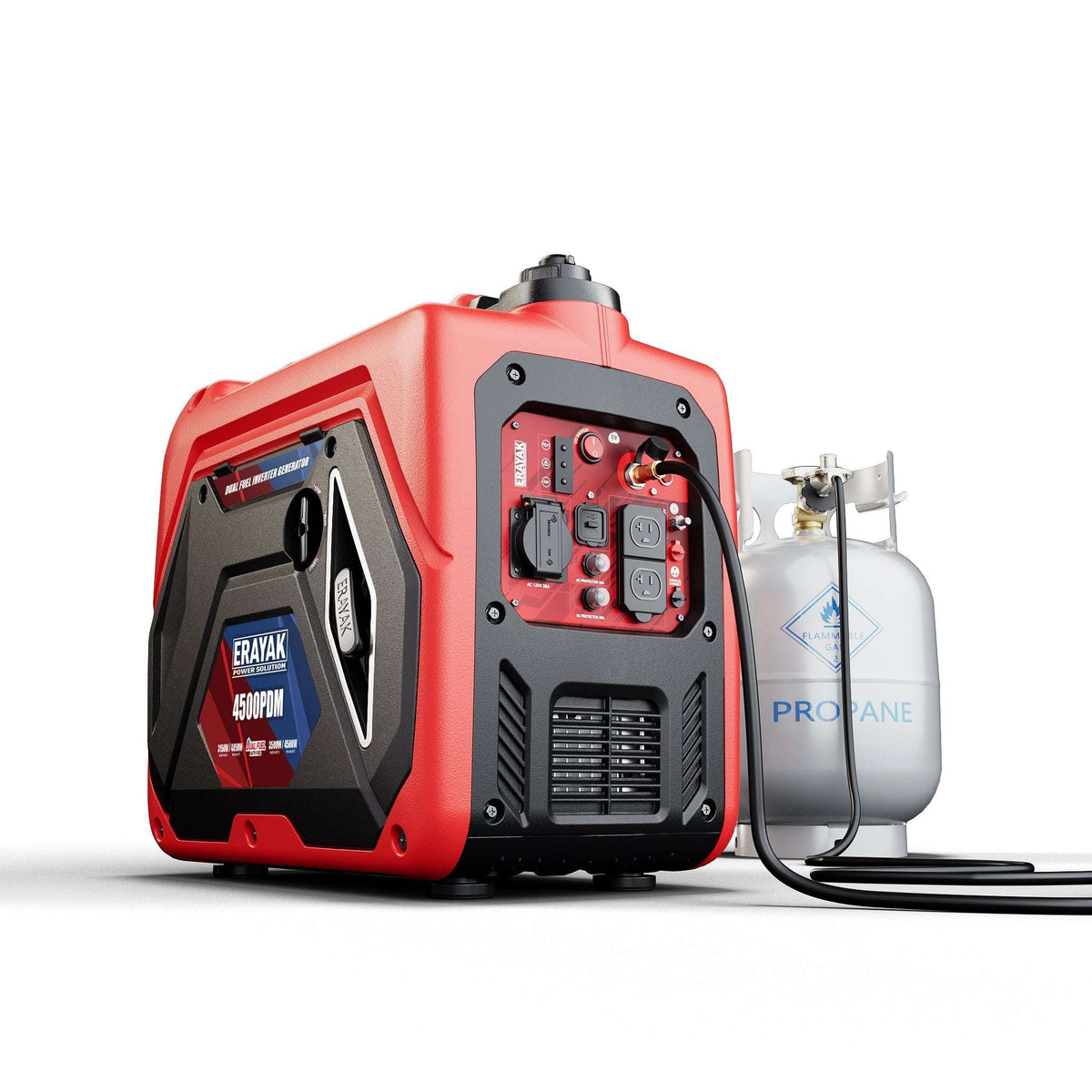

ERAYAK 4500PDM 4500W Dual-Fuel Inverter Generator – Gasoline & Propane, Manual Start, RV Ready
Enjoy dependable portable power and greater fuel flexibility with the ERAYAK 4500PDM Dual-Fuel Inverter Generator. Designed for RV camping, outdoor adventures, emergency preparation, and selected household essentials, this versatile generator operates on gasoline or propane to keep compatible equipment powered wherever your plans take you.
Delivering up to 4,500 peak watts and 3,500 running watts on gasoline, the ERAYAK 4500PDM combines inverter technology, reliable manual recoil starting, automatic propane-to-gasoline fuel switchover, and convenient 120V connections in a portable 54-pound design.
Key Features & Benefits
- Dual-Fuel Flexibility: Operates on gasoline or propane (LPG) for convenient portable power.
- 4,500W Peak Output: Delivers 3,500 running watts on gasoline for compatible appliances, equipment, and electronics.
- Propane Power: Provides 4,050 peak watts and 3,150 running watts when operating on propane.
- Manual Recoil Start: Straightforward pull-start operation without requiring an electric starting system.
- Automatic Fuel Switchover: Designed to transition from propane to gasoline when propane pressure becomes insufficient, provided usable gasoline is available and operating conditions are met.
- Inverter Technology: Produces low-distortion electrical power suitable for many compatible electronics and appliances.
- 120V RV Ready: Includes a 30A RV adapter for compatible RV electrical systems.
- ECO Mode: Adjusts engine speed to match electrical demand, helping manage fuel consumption and noise.
- USB Charging: USB-A and USB-C connections provide convenient charging options.
- Parallel Connection Interface: Supports compatible approved parallel equipment for expanded power configurations.
- Portable Construction: Weighs approximately 54 pounds for easier transportation and storage.
- Electrical Protection: Includes low-oil and overload protection.
Dual-Fuel Performance – Gasoline or Propane
Choose the fuel source that best matches your power requirements, travel plans, and fuel availability. The ERAYAK 4500PDM delivers different output ratings depending on the selected fuel.
| Fuel Type | Peak Output | Running Output |
|---|---|---|
| Gasoline | 4,500W | 3,500W |
| Propane (LPG) | 4,050W | 3,150W |
Gasoline Operation: Provides the highest available power output, making it a practical choice for portable tools, compatible RV appliances, and selected emergency power needs.
Propane Operation: Offers an alternative fuel source for camping, RV travel, and backup preparation. Propane can be stored separately from the generator in an appropriate cylinder.
Automatic Fuel Switchover: When propane pressure drops below the required operating level, the generator is designed to transition to gasoline when usable gasoline is available and operating conditions permit. Always monitor connected loads and fuel levels.
Important: The ERAYAK 4500PDM operates on gasoline and propane only. It does not support natural gas. Peak wattage is temporary and must not be treated as continuous output.

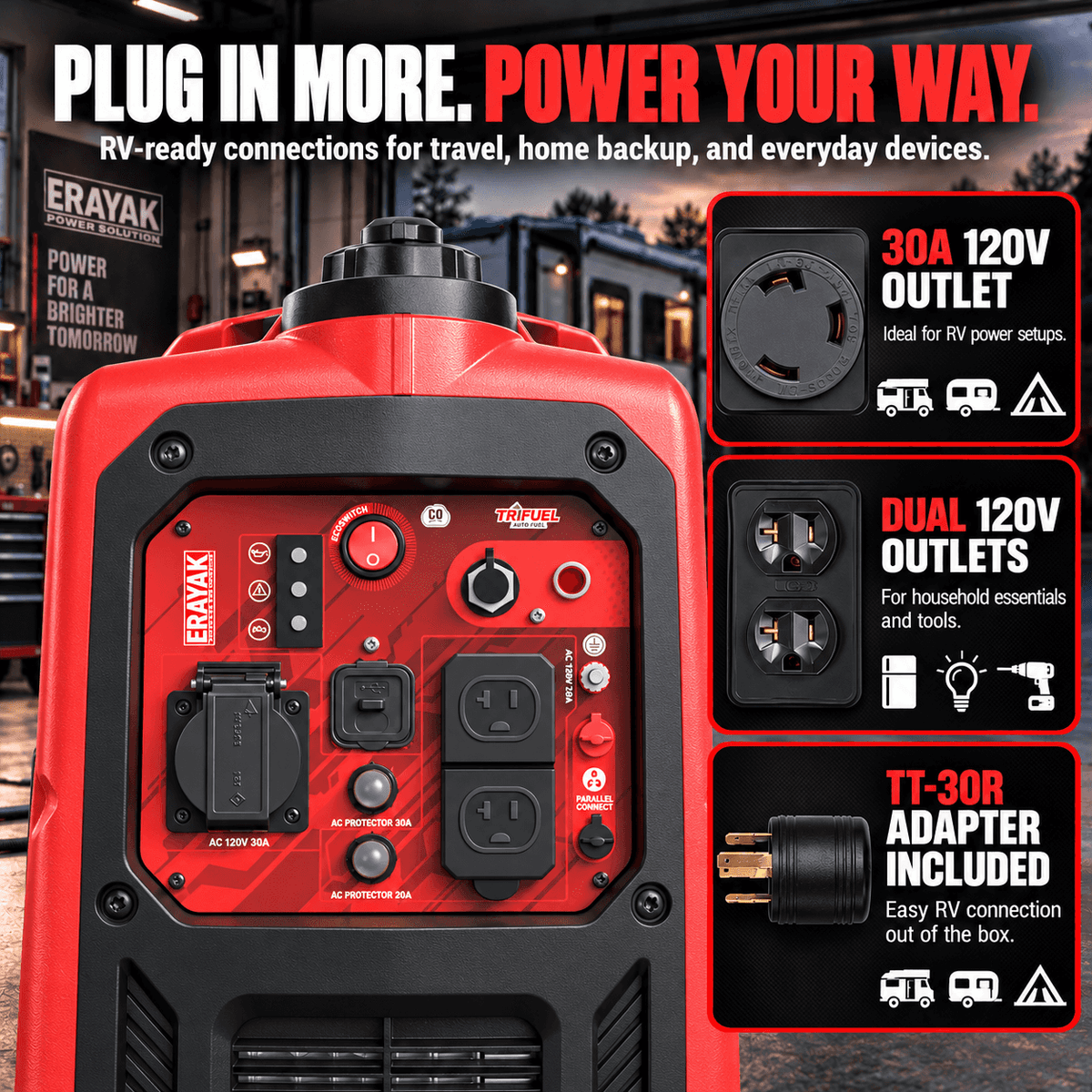

120V Power Connections & RV Compatibility
Designed for versatile portable electricity, the ERAYAK 4500PDM provides convenient AC outlets and charging connections for compatible equipment.
- 120V 30A NEMA L5-30R: One locking receptacle for compatible high-current electrical equipment and RV connections.
- Dual 120V 20A Outlets: Two household-style receptacles for compatible appliances, chargers, lighting, and tools.
- 30A RV Adapter Included: L5-30P to TT-30R adapter connects compatible 120V 30A RV cords.
- USB-A & USB-C: Convenient connections for compatible portable electronic devices.
- Parallel Interface: Supports approved compatible parallel connection equipment.
- Ground Terminal: Provided for proper electrical grounding arrangements according to the manufacturer's instructions.
Electrical Output Note: The 4500PDM is a 120V-only generator. The 30A locking outlet has a theoretical maximum of 3,600W at 120V, but continuous generator output remains limited to 3,500W on gasoline or 3,150W on propane. The generator's available power is shared across its outlets.
The included RV adapter does not create 240V power, increase available wattage, or provide full 50A RV service.
Portable Power for Everyday Adventures
Whether preparing for an outdoor getaway or unexpected power interruption, the ERAYAK 4500PDM offers practical electricity for a variety of applications.
- RV Camping: Supports compatible 30A RV systems, lighting, appliances, and selected air-conditioning equipment.
- Camping & Outdoor Recreation: Power compatible camping appliances, lights, chargers, and recreational equipment.
- Emergency Home Essentials: Supply electricity to selected 120V appliances and electronics using appropriate safe connections.
- Outdoor Events: Provide portable power for compatible lighting and electrical equipment.
- Electronics: Charge laptops, mobile devices, and other compatible electronics.
- Portable Tools: Operate compatible tools within the generator's running and starting power limits.
Common Appliance Power Requirements
The following estimates can help with preliminary power planning. Actual requirements depend on the specific appliance and operating conditions.
| Appliance | Estimated Starting / Maximum Watts | Estimated Running Watts |
|---|---|---|
| Circular Saw (15A) | 4,500W | 1,500–1,800W |
| RV Air Conditioner (13,500 BTU) | 4,000W | 1,200–1,800W |
| Washing Machine | 3,500W | 500–1,200W |
| Sump Pump (1/2 HP) | 3,000W | 800–1,200W |
| Refrigerator / Freezer | 2,500W | 400–800W |
| Electric Chainsaw | 2,200W | 1,200–1,800W |
| Hair Dryer | 1,800W | 1,000–1,800W |
| Electric Kettle | 1,500W | 1,000–1,500W |
| Rice Cooker | 1,200W | 700–1,200W |
| Portable Space Heater | 1,000W | 750–1,000W |
Power Planning Note: These are illustrative estimates, not guaranteed appliance specifications. Some equipment near the generator's peak output may not start successfully, especially when other loads are connected. Verify actual appliance running wattage, starting surge, voltage requirements, and total electrical load before operation. Heating appliance figures represent maximum input rather than motor starting surge.
Manual Recoil Starting
The ERAYAK 4500PDM features a straightforward manual recoil starting system. Unlike the ERAYAK 4500PDE, this model does not include electric or remote starting.
Prepare the selected fuel system, follow the manufacturer's choke and fuel-control procedures, and start the engine using the recoil starter. Allow the generator to stabilize before gradually connecting electrical loads.
Gasoline & Propane Runtime
The 4500PDM offers practical runtime for RV camping, portable electricity, and selected emergency applications.
| Fuel Source | Electrical Load | Published Runtime |
|---|---|---|
| Gasoline – 2.25 Gallon Tank | 25% | Up to 12 Hours |
| Gasoline – 2.25 Gallon Tank | 50% | Up to 8 Hours |
| Propane – 20 lb Tank | 25% | Up to 12 Hours |
| Propane – 20 lb Tank | 50% | Up to 8 Hours |
| Propane – 20 lb Tank | 100% | Up to 5 Hours |
Runtime figures are published estimates under specified test conditions at approximately 77°F (25°C). Actual performance varies with electrical demand, altitude, temperature, fuel quality, and maintenance.
ECO Mode & Efficient Operation
The integrated ECO Mode adjusts engine speed according to electrical demand, helping reduce unnecessary fuel consumption during lighter-load operation.
For appliances and tools requiring substantial starting current, such as compressors or motor-driven equipment, ECO Mode may need to be disabled to support reliable starting.
Technical Specifications
| Brand | ERAYAK |
|---|---|
| Model | 4500PDM |
| Generator Type | Dual-Fuel Inverter Generator |
| Fuel Types | Gasoline / Propane (LPG) |
| Gasoline Peak Output | 4,500W |
| Gasoline Running Output | 3,500W |
| Propane Peak Output | 4,050W |
| Propane Running Output | 3,150W |
| Rated Voltage | 120V AC |
| Frequency | 60Hz |
| Rated Current on Gasoline | 29.2A at 120V |
| Starting System | Manual Recoil |
| Engine Displacement | 149.3cc |
| Fuel Tank Capacity | 2.25 US Gallons (8.5L) |
| Recommended Gasoline | Unleaded, 87 Octane or Higher |
| Engine Oil Capacity | 0.6L / 600mL |
| Recommended Engine Oil | SAE 10W-30 / SAE 15W-40 |
| 30A Outlet | 1 × NEMA L5-30R, 120V |
| Household Outlets | 2 × 120V / 20A |
| USB Ports | USB-A + USB-C |
| Parallel Interface | Yes |
| ECO Mode | Yes |
| Automatic Fuel Switchover | Propane to Gasoline |
| Electrical Protection | Low-Oil / Overload |
| Product Weight | Approximately 54 lb (24.5 kg) |
| Dimensions | 19.88 × 16.93 × 20.25 in |
| Compliance | EPA & CARB Compliant |
RV Connection & Setup
The included 30A RV adapter makes it possible to connect compatible 120V 30A RV power cords to the generator's L5-30R locking outlet.
- Prepare Your Fuel: Select gasoline or propane and follow the manufacturer's fuel preparation and starting instructions.
- Connect the RV Adapter: With the generator stopped and RV loads turned off, connect the L5-30P to TT-30R adapter to the L5-30R outlet and attach a compatible RV power cord.
- Start the Generator: Follow the manual recoil starting procedure and allow electrical output to stabilize.
- Manage Electrical Loads: Gradually add compatible appliances while remaining within the selected fuel's continuous power rating.
RV Compatibility: Air-conditioner operation depends on compressor starting surge, connected appliances, generator output, and operating conditions. Some RV air-conditioning systems may require compatible soft-start equipment.
Care & Maintenance
Routine maintenance helps preserve generator performance and operating reliability.
- Check engine oil before each use.
- Use the manufacturer-recommended engine oil and avoid overfilling.
- Inspect and maintain the air filter according to the owner's manual.
- Inspect the spark plug and replace it when required.
- Check propane hoses, regulators, and connections for damage or leaks.
- Keep generator ventilation openings clean and unobstructed.
- Follow manufacturer instructions for fuel storage and extended generator storage.
- Use only approved compatible accessories and parallel connection equipment.
Important Generator Safety Information
WARNING: Generator exhaust contains carbon monoxide, a poisonous gas that can cause serious injury or death.
- Operate outdoors only, at least 20 feet from doors, windows, and vents, with exhaust directed away from occupied buildings.
- Never operate inside a house, garage, RV, tent, shed, or enclosed or partially enclosed space.
- Use working carbon monoxide alarms inside occupied buildings.
- Do not operate in rain, standing water, or flooded conditions.
- Never refuel gasoline while the generator is running or hot.
- Connect propane cylinders, hoses, and regulators according to the manufacturer's instructions.
- Check fuel connections for leaks using approved procedures.
- Use properly rated extension cords and electrical adapters.
- Never connect the generator directly to a household wall receptacle or backfeed household wiring.
- Use properly installed, approved transfer equipment for household backup connections.
- Turn off or disconnect connected electrical loads before shutting down the generator.
- Always follow the current ERAYAK owner's manual and applicable safety requirements.
ERAYAK 4500PDM Owner's Manual
For detailed operating instructions, gasoline and propane setup, manual recoil starting, maintenance schedules, troubleshooting, and safety information, consult the manufacturer's official owner's manual.
View ERAYAK 4500PDM Owner's Manual – Official Manual Library
Find model 4500PDM in the Portable & RV Power section. Select the manual preview or available PDF download. Verify that the guide matches the 4500PDM manual-start version.
Why Choose the ERAYAK 4500PDM?
The ERAYAK 4500PDM combines portable power, dual-fuel flexibility, efficient inverter operation, and dependable manual starting in one versatile generator. Whether you're preparing for your next RV adventure, powering outdoor equipment, or planning for unexpected electrical interruptions, this generator offers convenient gasoline and propane operation to match your needs.
Make every adventure more comfortable and every backup plan more flexible. Discover the ERAYAK 4500PDM Dual-Fuel Inverter Generator at Backyard Perch and enjoy the freedom of dependable portable power.
Two Fuels.
More Freedom.
Meet the ERAYAK 4500PDM dual-fuel inverter generator. Choose gasoline or propane, enjoy reliable manual recoil starting, and power compatible RV appliances, camping equipment and selected household essentials. Automatic propane-to-gasoline switchover provides additional operating flexibility.
Two Fuels. Portable Freedom.
Gasoline and propane flexibility meets reliable manual recoil starting in a portable 120V inverter generator.
Gasoline + Propane
Two fuel choices for travel, camping and portable backup. No natural-gas capability.
Manual Recoil Start
A straightforward pull-start system for gasoline or propane operation. Follow the manual's fuel and choke procedure.
120V / 30A RV Ready
Connect compatible 30A RV power cords through the included L5-30P to TT-30R adapter and the generator's L5-30R outlet.
Automatic Fuel Switchover
Designed to transition from propane to gasoline when propane pressure becomes insufficient, provided usable gasoline is available.
Inverter Output
Inverter technology delivers power suitable for many compatible electronics and appliances.
ECO Mode
Adjusts engine operation according to electrical demand during lighter-load use.
Your Portable Power Hub.
A 30A locking receptacle, dual 20A household outlets and an included RV adapter provide practical connections for 120V equipment.
120V · 30A L5-30R
One 120V 30A locking outlet for compatible electrical equipment and 30A RV connections using the included adapter.
Gasoline: Up to 3,500W running
Propane: Up to 3,150W running
Subject to the 30A receptacle and breaker limits.
Dual 120V · 20A Outlets
Two household-style outlets for compatible appliances, portable electronics, camping equipment and tools.
20A Circuit: 2,400W theoretical at 120V
Observe applicable breaker, shared circuit and total generator limits.
30A RV Adapter
The included L5-30P to TT-30R adapter allows a standard compatible 30A RV power cord to connect to the generator's L5-30R outlet.
Voltage: 120V only
The adapter does not increase generator power or provide 240V.
Power Changes with Your Fuel.
Choose gasoline or propane based on your operating needs, then plan for the different running and peak ratings.
Gasoline Running Power
Up to 3,500W of rated output, with up to 4,500W temporary peak output for compatible starting requirements.
Propane Running Power
Up to 3,150W of rated output, with up to 4,050W temporary peak output. Connected loads must fit propane's lower power rating.
120V RV Connection
The L5-30R receptacle has a 30A rating at 120V. Actual continuous output remains limited to the selected fuel's rated generator power.
The 4500PDM is designed to transition from propane to gasoline when propane pressure falls below its operating requirement, provided usable gasoline is available in the tank and the required operating conditions are met. Monitor fuel supply and connected electrical loads.
Important: 4,500W gasoline peak and 4,050W propane peak are temporary ratings, not continuous power. Individual outlet ratings do not increase total generator output. The available capacity is shared across all outlets. Check motor starting surge, running power and selected fuel before adding loads.
Dual Fuel.
More Freedom.
Portable dual-fuel performance for RV camping, outdoor activities, electronic devices and selected 120V household backup needs.
RV Camping
Compatible 30A RV setups
Camping
Lighting and outdoor comforts
Home Essentials
Selected 120V backup loads
Outdoor Events
Portable power and lighting
Electronics
TVs, laptops and charging
Plan Your Power.
Explore 10 common appliances and tools, ranked by estimated starting or maximum input watts. Check actual running and starting requirements for your equipment, especially when operating on propane.
Power Planning Note: All wattages are illustrative planning estimates, not guaranteed specifications for particular appliance models. For motor-driven equipment, peak values represent possible starting demand. For heating appliances, maximum input power is shown instead. Actual startup requirements may vary significantly with motor size, design and operating conditions. The ERAYAK 4500PDM provides 4,500W peak / 3,500W running on gasoline and 4,050W peak / 3,150W running on propane. A load near the generator's peak rating may not start reliably, particularly with other equipment already connected. Verify appliance voltage, actual running and starting watts, receptacle ratings, breaker limits and total connected load before use.
Reliable Starts. Flexible Fuel.
Manual Recoil Start
The 4500PDM uses a manual recoil starting system. It does not include electric or remote starting. Follow the specified gasoline or propane startup procedure.
Gasoline Runtime
With the 2.25 gal gasoline tank, published runtime is up to 12 hours at 25% load or 8 hours at 50% load under specified conditions.
Propane Runtime
With a 20 lb propane tank, published runtime is up to 12 hours at 25% load, 8 hours at 50% load or 5 hours at full load.
ECO Mode
ECO mode adjusts engine speed according to changing demand. Disable ECO mode when appropriate for high-starting-current tools, motors and compressors.
Engine Maintenance
Engine oil capacity: 0.6L / 600mL. Check oil level before use, and follow the owner's manual for oil, air filter and spark plug maintenance.
Electrical Protection
Low-oil and overload protection help protect the generator. The parallel connection interface should be used only with compatible approved parallel equipment.
Runtime Test Conditions: Published runtime figures are based on specified operating conditions at approximately 77°F (25°C). Actual runtime varies with load, altitude, fuel quality, temperature and maintenance. Refer to the owner's manual for starting procedures, service intervals and safety instructions.
Connect Your RV the Right Way.
The included L5-30P to TT-30R adapter allows a compatible 30A RV power cord to connect to the generator's 120V L5-30R locking outlet.
Prepare Your Fuel
Choose gasoline or propane and prepare the fuel system according to the owner's manual. If relying on automatic propane-to-gasoline switchover, make sure usable gasoline is available in the tank.
Connect Your RV Adapter
With the generator stopped and RV electrical loads off, insert the included L5-30P to TT-30R adapter into the generator's L5-30R outlet. Connect a compatible 30A RV power cord.
Start & Manage Loads
Start the generator using the manual recoil procedure. Allow electrical output to stabilize, then add RV loads gradually. Stay within the selected fuel's continuous power rating.
RV Compatibility: The L5-30P to TT-30R adapter is intended for compatible 120V 30A RV connections. It does not create 240V output, provide full 50A RV service or increase the generator's available electrical power. RV air conditioner compatibility depends on compressor starting surge and total connected load.
Operate the generator outdoors only, at least 20 ft from doors, windows and vents, with exhaust directed away from occupied buildings. Never operate inside an RV, tent, house, garage, shed or any enclosed or partially enclosed space. Use working carbon monoxide alarms inside occupied areas. Keep the generator dry and do not operate in rain, standing water or flooding. Connect propane cylinders, hoses and regulators according to the owner's manual. Check all fuel connections for leaks using approved methods. Never refuel gasoline while the generator is running or hot. Use appropriately rated cords, adapters and electrical connections. Never backfeed household wiring through a wall outlet. Disconnect or turn off connected loads before shutdown. Always follow the current ERAYAK owner's manual and applicable electrical and fuel safety requirements.
